SKU: 6010-NTN

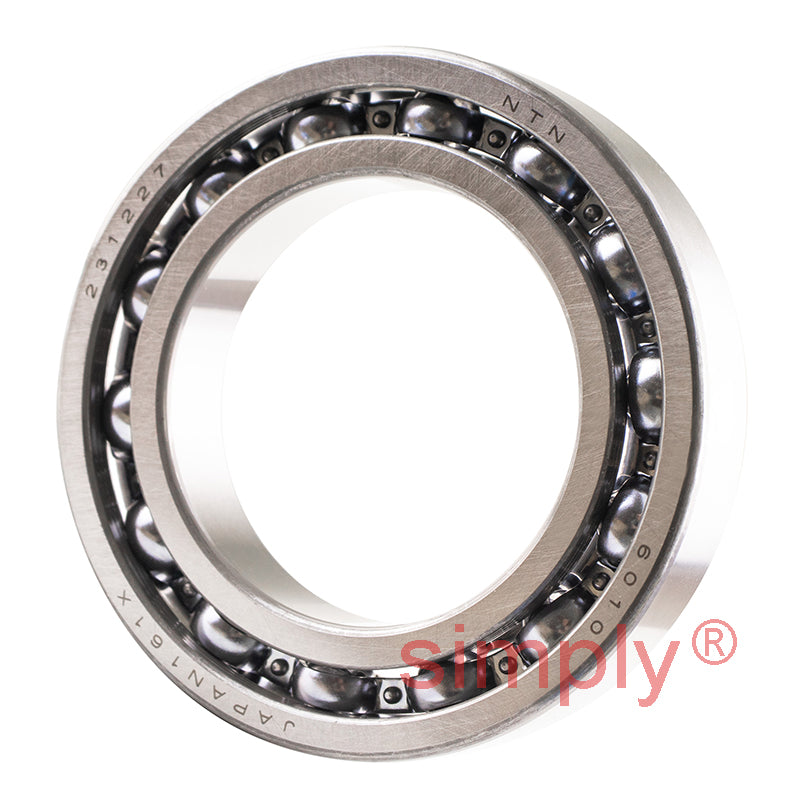

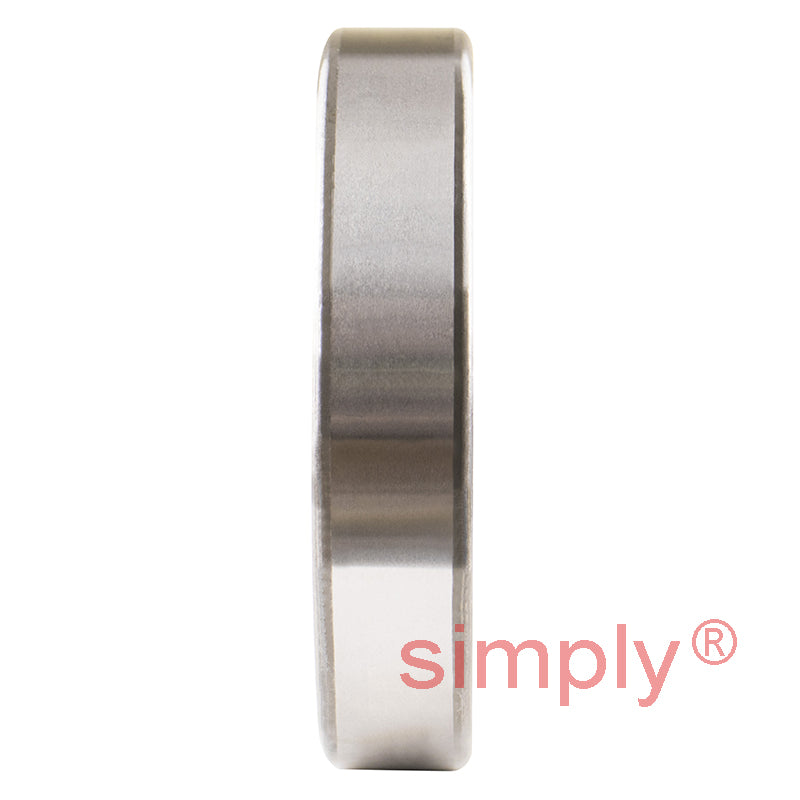

NTN 6010 Open Type Deep Groove Ball Bearing 50x80x16mm
NTN 6010 Open Type Deep Groove Ball Bearing 50x80x16mm
Regular price
CHF 21.00
ex VAT
Regular price
Sale price
CHF 21.00
ex VAT
Equivalent to: 6010CM 9110K 9110 110KS 6110 3L10 EL50 ELL50
In stock
Price Break
3+
CHF 16.21
5+
CHF 15.30
10+
CHF 15.11
25+
CHF 14.93
49+
CHF 14.75
74+
CHF 14.57
99+
CHF 13.66
199+
CHF 13.48
249+
CHF 13.29
499+
CHF 13.11
999+
CHF 12.75
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6010CM 9110K 9110 110KS 6110 3L10 EL50 ELL50
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 80mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 24.2 kN |
| C<sub>or</sub> | 16.6 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 15.5 kN |
| Grease | 8400 rpm |
| Oil | 9800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 55mm |
| D<sub>a</sub> Max. | 75mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.261 kg |
