SKU: 6010LLB/5K-NTN

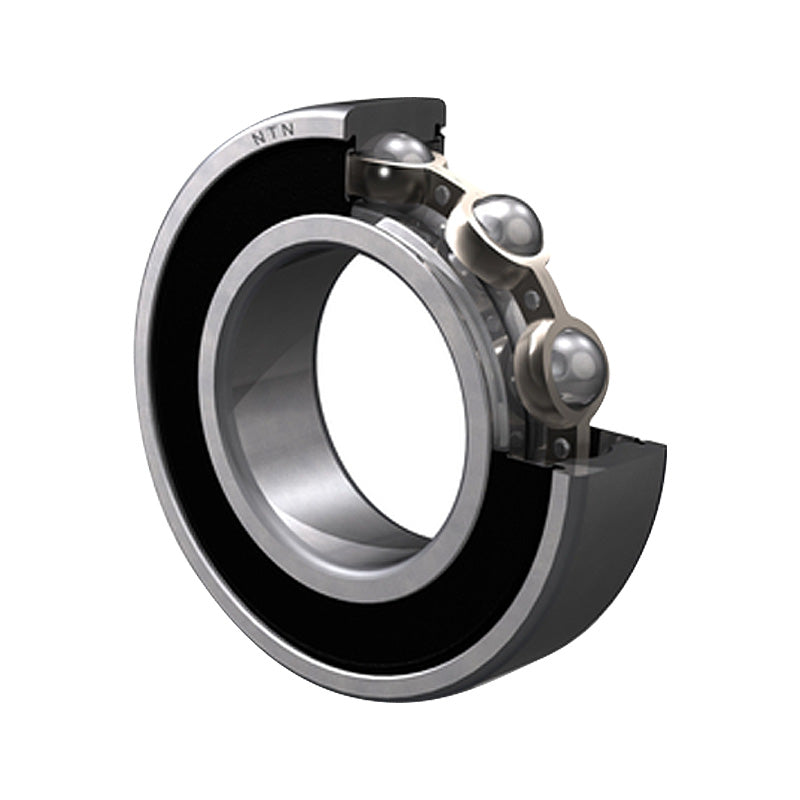

NTN 6010LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 50x80x16mm
NTN 6010LLB/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 50x80x16mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
Equivalent to: 6010LLBCM 60102NKE 6010VV 60102RSL 60102RZ
In stock
Price Break
3+
CHF 13.55
5+
CHF 12.78
10+
CHF 12.63
25+
CHF 12.48
49+
CHF 12.33
74+
CHF 12.18
99+
CHF 11.42
199+
CHF 11.26
249+
CHF 11.11
499+
CHF 10.96
999+
CHF 10.65
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6010LLBCM 60102NKE 6010VV 60102RSL 60102RZ
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 80mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 24.2 kN |
| C<sub>or</sub> | 16.6 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 15.5 kN |
| Grease | 8400 rpm |
| Oil | 9800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 55mm |
| d<sub>a</sub> Max. | 57.5mm |
| D<sub>a</sub> Max. | 75mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.261 kg |
