SKU: 6010LLUNR/2AS-NTN

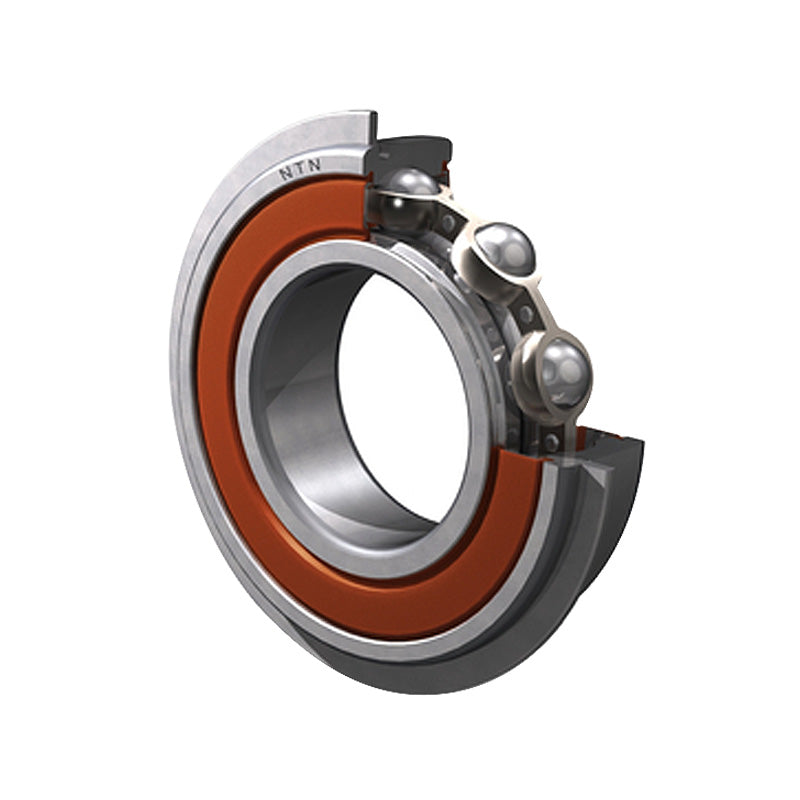

NTN 6010LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm
Equivalent to: 6010LLUNRCM 6010LLUNR 6010NSENR 6010DUNR 6010RSNR 6010RSHNR 6010PNR 6010RSRNR 6010LUNR 60102NSENR 6010DDUNR 60102RSNR 6010-2RSNR 60102RS1NR 60102RSHNR 6010PPNR 60102RSRNR 6010LLUNR 6010RS2NR 60102RS2NR 60102RSLNR 6010LFSNR 6010EENR 9110NPPG 110KSZZG Z4993L10
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 80mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 24.2 kN |
| C<sub>or</sub> | 16.6 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 15.5 |
| --- | Fitting Dimensions |
| Speed | 5000rpm |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
