SKU: 6011-2RS-CDX

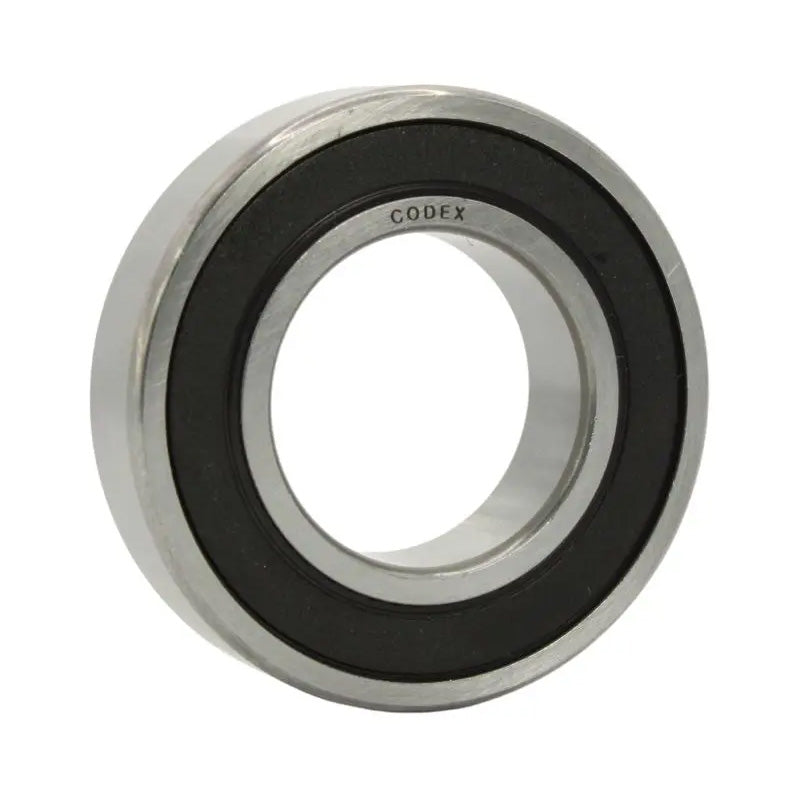

Codex 60112RS Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
Codex 60112RS Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
Equivalent to: 60112RS 60112RSH 60112RS1 60112RSR 60112RSL 6011LFS 6011EE 6011DU 6011LLU EL552RS 6011PP 9111PP 111KSZZ 993L11 6111KK 10L55
In stock
Price Break
4+
CHF 14.83
10+
CHF 14.00
20+
CHF 13.83
30+
CHF 13.67
50+
CHF 13.50
75+
CHF 13.33
100+
CHF 12.50
200+
CHF 12.33
250+
CHF 12.17
500+
CHF 12.00
1000+
CHF 11.67
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60112RS 60112RSH 60112RS1 60112RSR 60112RSL 6011LFS 6011EE 6011DU 6011LLU EL552RS 6011PP 9111PP 111KSZZ 993L11 6111KK 10L55
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| B | 18mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 21.2 kN |
| Fatigue load limit Pu | 0.9 |
| Reference speed | 16000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.39 kg |
| d1 | 66.3mm |
| D2 | 81.5mm |
| r1r2 | 1.1mm |
| da min | 61mm |
| Da max | 84mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
