SKU: 6011C3-NTN

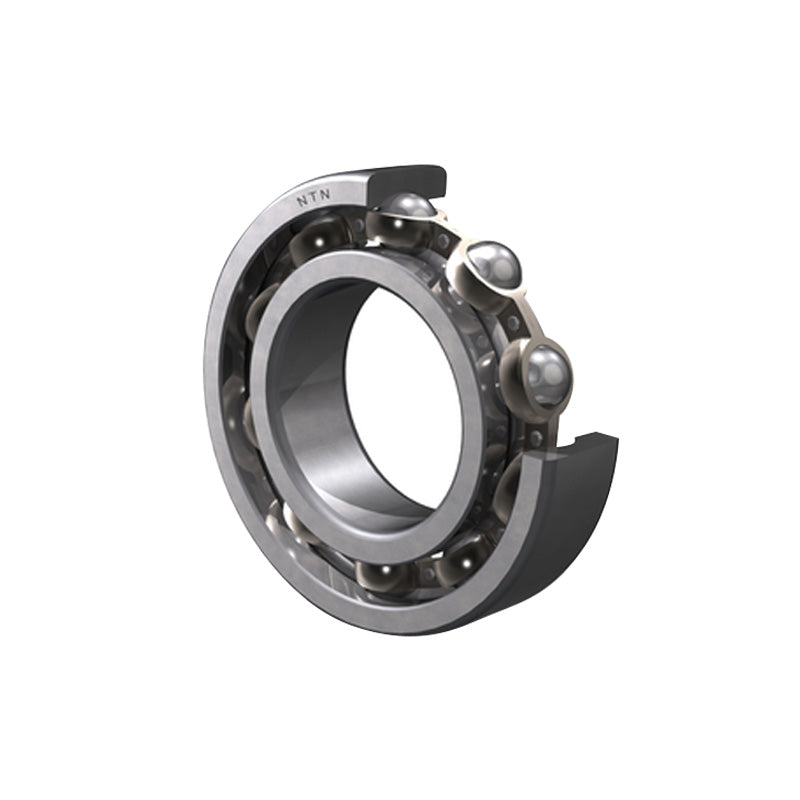

NTN 6011C3 Open Type Deep Groove Ball Bearing 55x90x18mm
NTN 6011C3 Open Type Deep Groove Ball Bearing 55x90x18mm
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
Equivalent to: 9111KC3 9111C3 111KSC3 6111C3 3L11C3 EL55C3 ELL55C3
In stock
Price Break
3+
CHF 23.80
5+
CHF 22.46
10+
CHF 22.19
25+
CHF 21.93
49+
CHF 21.66
74+
CHF 21.39
99+
CHF 20.06
199+
CHF 19.79
249+
CHF 19.52
499+
CHF 19.25
999+
CHF 18.72
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 9111KC3 9111C3 111KSC3 6111C3 3L11C3 EL55C3 ELL55C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 90mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 31.5 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.62 kN |
| f<sub>0</sub> | 15.3 kN |
| Grease | 7700 rpm |
| Oil | 9000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 61.5mm |
| D<sub>a</sub> Max. | 83.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.388 kg |
