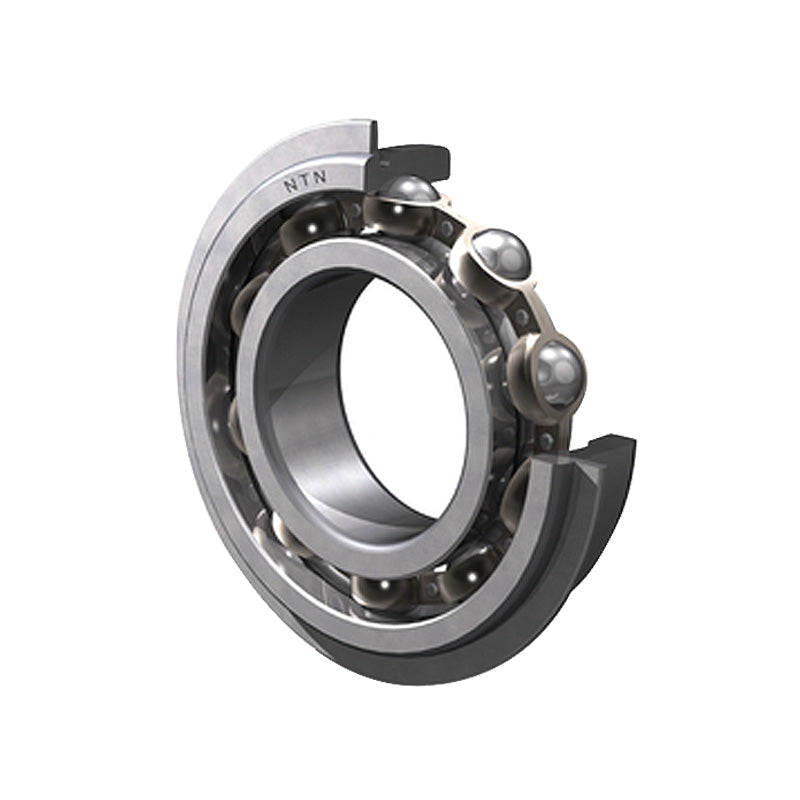

• NTN 6011NR Open Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
1 1

SKU: 6011NR-NTN

NTN 6011NR Open Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm

NTN 6011NR Open Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
CHF 63.00 ex VAT
CHF 63.00 ex VAT
Sale Sold out

Equivalent to: 6011NRCM 9111KG 111KSG 43L11

In stock

Price Break
3+ CHF 50.01
5+ CHF 47.20
10+ CHF 46.64
25+ CHF 46.08
49+ CHF 45.51
74+ CHF 44.95
99+ CHF 42.14
199+ CHF 41.58
249+ CHF 41.02
499+ CHF 40.46
999+ CHF 39.33
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: Snap ring location in housings, Rubber and Metal Sealed versions available


Equivalent: 6011NRCM 9111KG 111KSG 43L11
Brand / Quality:
NTN - High Quality
Inside Diameter:
55mm
Outside Diameter:
90mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Snap Ring:
Snap Ring
Technical
--- Bearing dimensions
d 55mm
D 90mm
B 18mm
r<sub>s</sub> min 1.1mm
rNS Min. 0.5mm
--- Loads angles and speeds
C<sub>r</sub> 31.5 kN
C<sub>or</sub> 21.2 kN
C<sub>u</sub> 1.62 kN
f<sub>0</sub> 15.3 kN
Grease 7700 rpm
Oil 9000 rpm
--- Snap Ring Dimensions
D<sub>1</sub> Max. 86.79mm
a Max. 2.87mm
b Min. 2.7mm
r<sub>o</sub> Max. 0.6mm
D<sub>2</sub> Max. 96.5mm
f Max. 2.46mm
--- Fitting Dimensions
d<sub>a</sub> Min. 61.5mm
d<sub>a</sub> Max. 64mm
D<sub>a</sub> Max. 83.5mm
D<sub>X</sub> (approx) 98mm
C<sub>Y</sub> Max. 5mm
C<sub>Z</sub> Min. 2.5mm
r<sub>as</sub> Max. 1mm
r<sub>Nas</sub> Max. 0.5mm
Weight 0.388 kg
