SKU: 6011ZZNR/2AS-NTN

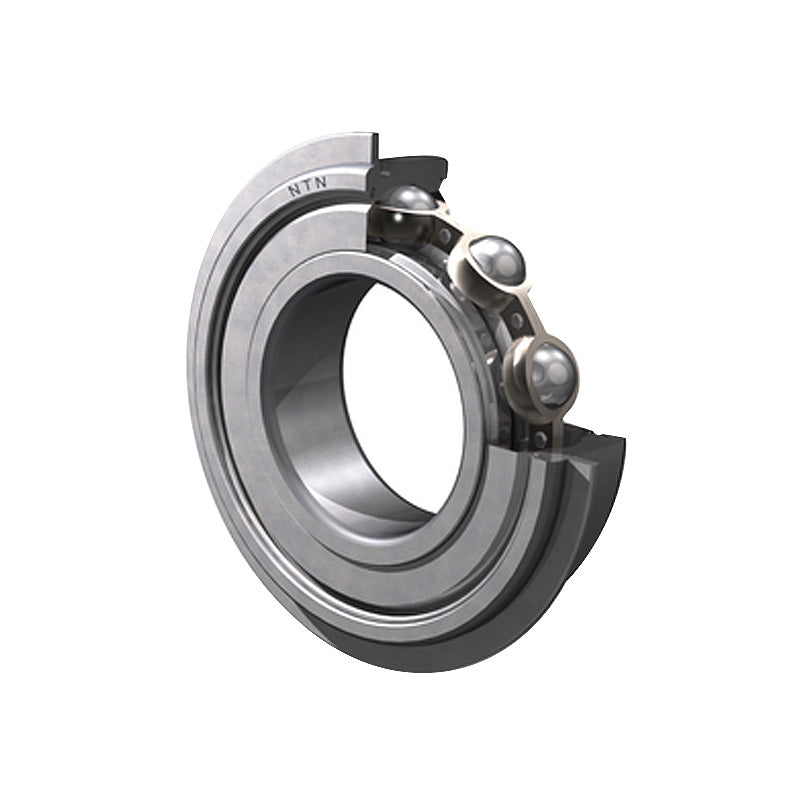

NTN 6011ZZNR/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 55x90x18mm
Equivalent to: 6011ZZNRCM 6011ZZNR 6011ZZNR 60112ZNR 6011ZZNR 60112ZRNR 6011ZZENR 6011FFNR 6011DDNR 6011DDCNR 6011KDDCNR EL552ZNR EL55ZZNR 9111KDDG 4773L11 111KSFFG
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6011ZZNRCM 6011ZZNR 6011ZZNR 60112ZNR 6011ZZNR 60112ZRNR 6011ZZENR 6011FFNR 6011DDNR 6011DDCNR 6011KDDCNR EL552ZNR EL55ZZNR 9111KDDG 4773L11 111KSFFG
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 55mm |
| D | 90mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 31.5 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.62 kN |
| f<sub>0</sub> | 15.3 rpm |
| Grease | 7700 rpm |
| --- | Fitting Dimensions |
| Oil | 9000 rpm |
| D<sub>1</sub> Max. | 86.79mm |
| a Max. | 2.87mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
