SKU: 6012C3-NTN

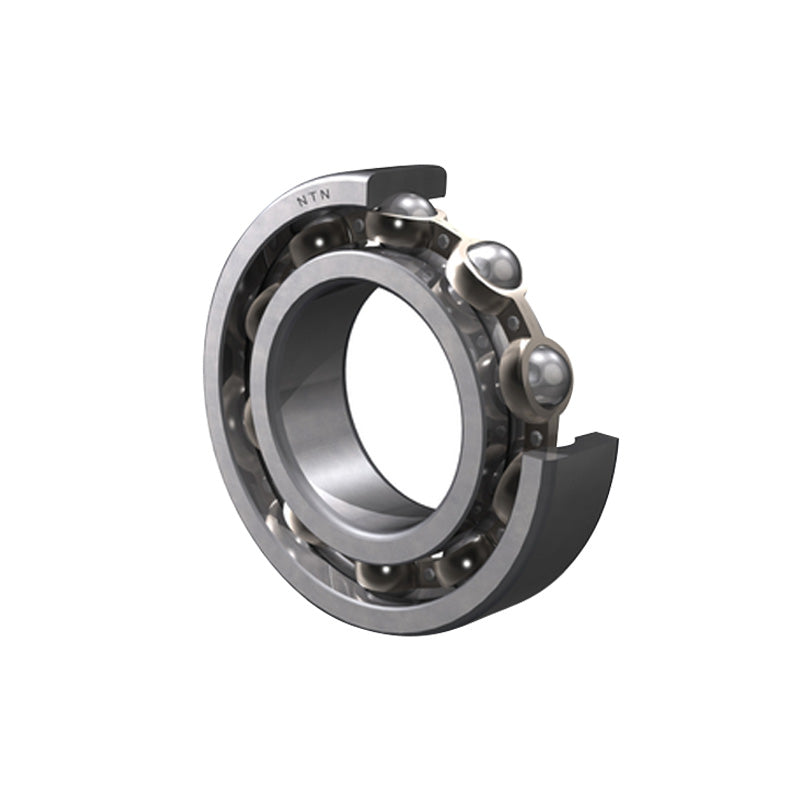

NTN 6012C3 Open Type Deep Groove Ball Bearing 60x95x18mm
NTN 6012C3 Open Type Deep Groove Ball Bearing 60x95x18mm
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
Equivalent to: 9112KC3 9112C3 112KSC3 6112C3 3L12C3 EL60C3 ELL60C3
In stock
Price Break
3+
CHF 27.30
5+
CHF 25.76
10+
CHF 25.46
25+
CHF 25.15
49+
CHF 24.84
74+
CHF 24.54
99+
CHF 23.00
199+
CHF 22.70
249+
CHF 22.39
499+
CHF 22.08
999+
CHF 21.47
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 9112KC3 9112C3 112KSC3 6112C3 3L12C3 EL60C3 ELL60C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 60mm |
| D | 95mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 23.2 kN |
| C<sub>u</sub> | 1.73 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 7000 rpm |
| Oil | 8300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 66.5mm |
| D<sub>a</sub> Max. | 88.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.414 kg |
