SKU: 6012NR-SKF

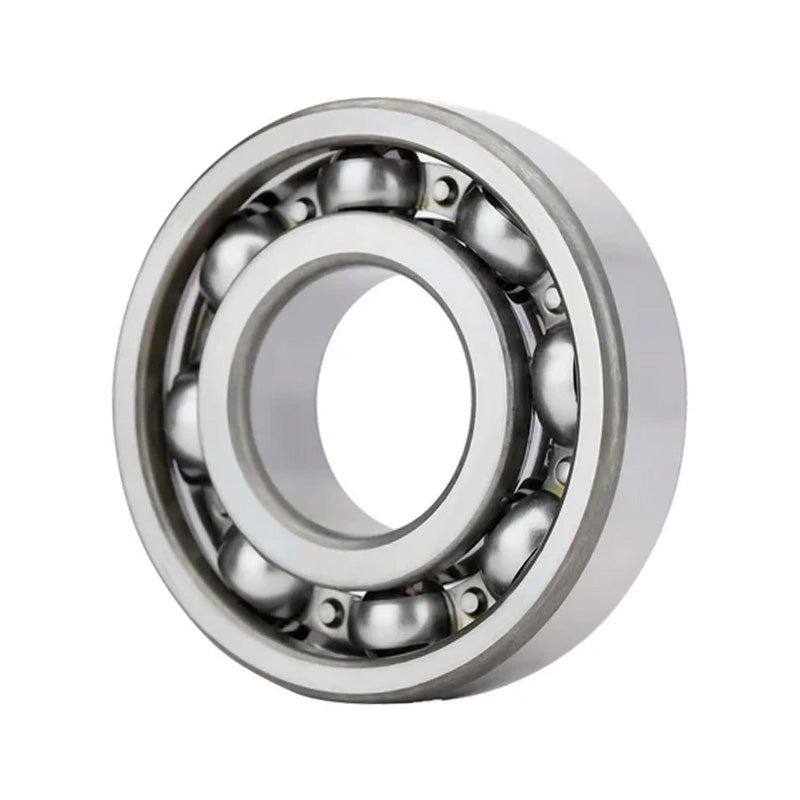

SKF 6012NR Open Type Snap Ring Deep Groove Bearing 60x95x18mm
SKF 6012NR Open Type Snap Ring Deep Groove Bearing 60x95x18mm
Regular price
CHF 95.00
ex VAT
Regular price
Sale price
CHF 95.00
ex VAT
In stock
Price Break
4+
CHF 75.59
10+
CHF 71.35
20+
CHF 70.50
30+
CHF 69.65
50+
CHF 68.80
75+
CHF 67.95
100+
CHF 63.70
200+
CHF 62.85
250+
CHF 62.00
500+
CHF 61.15
1000+
CHF 59.45
Description
Description
|

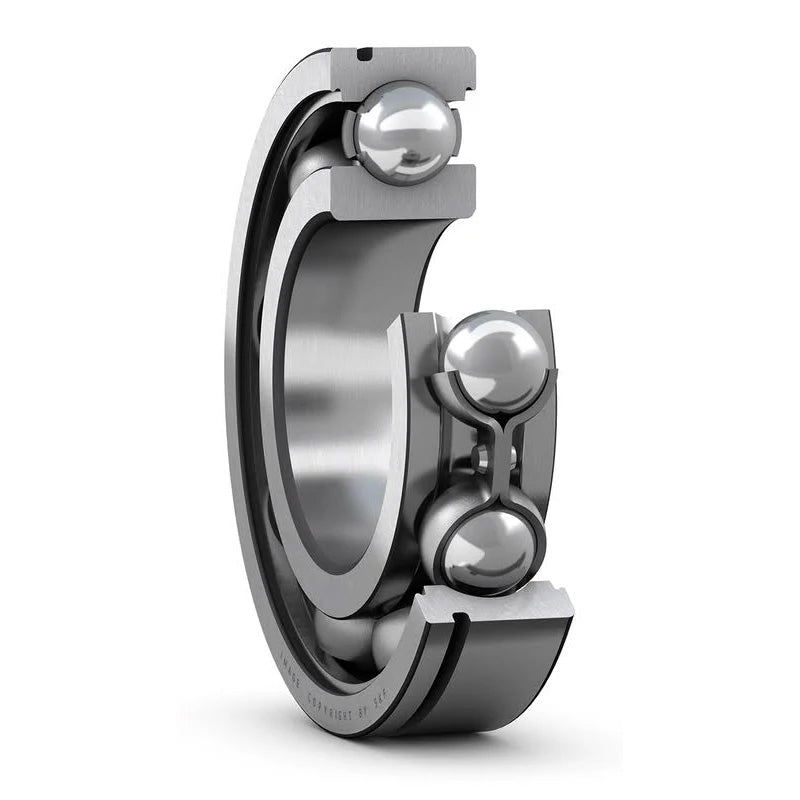

Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 18mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 23.2 kN |
| Fatigue load limit Pu | 0.98 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.4kg |
| Snap ring | SP 95 |
| d1 | 71.3mm |
| D2 | 86.5mm |
| D3 | 91.82mm |
| D4 | 101.6mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 2.87mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 66mm |
| Da max | 89mm |
| Db min | 103mm |
| ba min | 3mm |
| Ca max | 5.33mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
