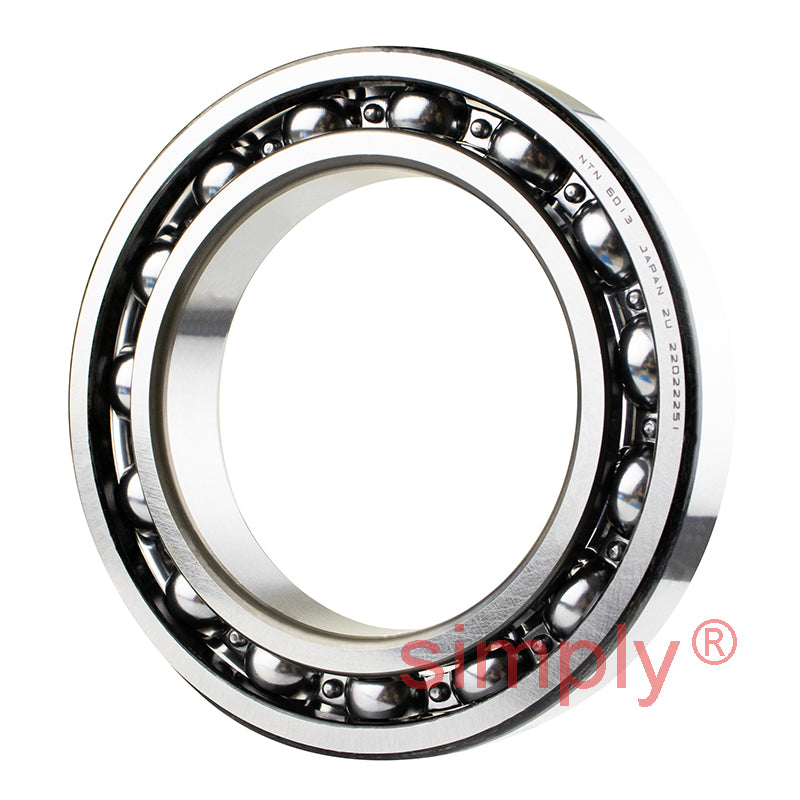

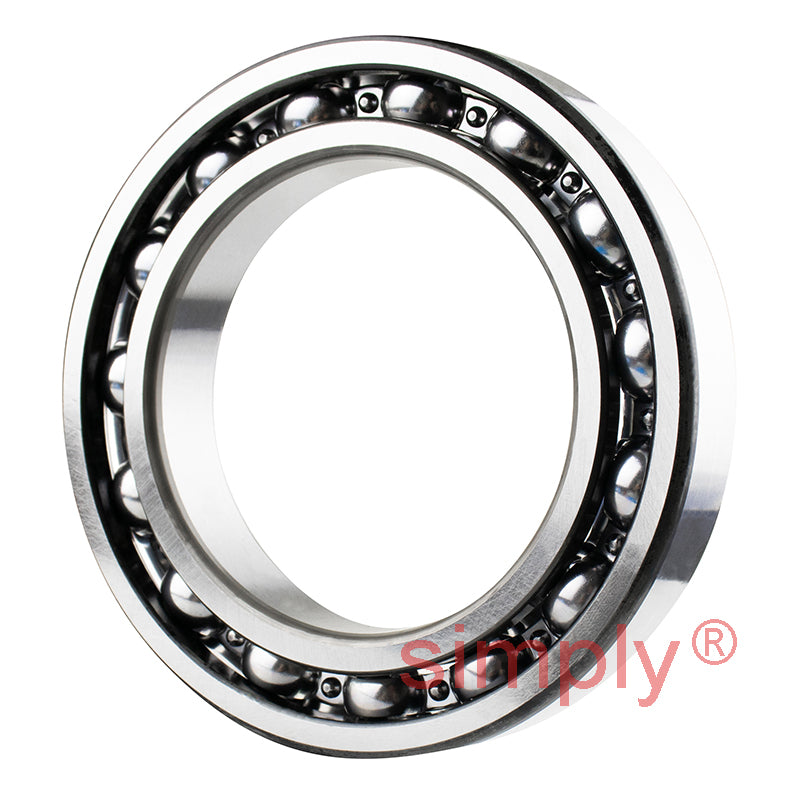

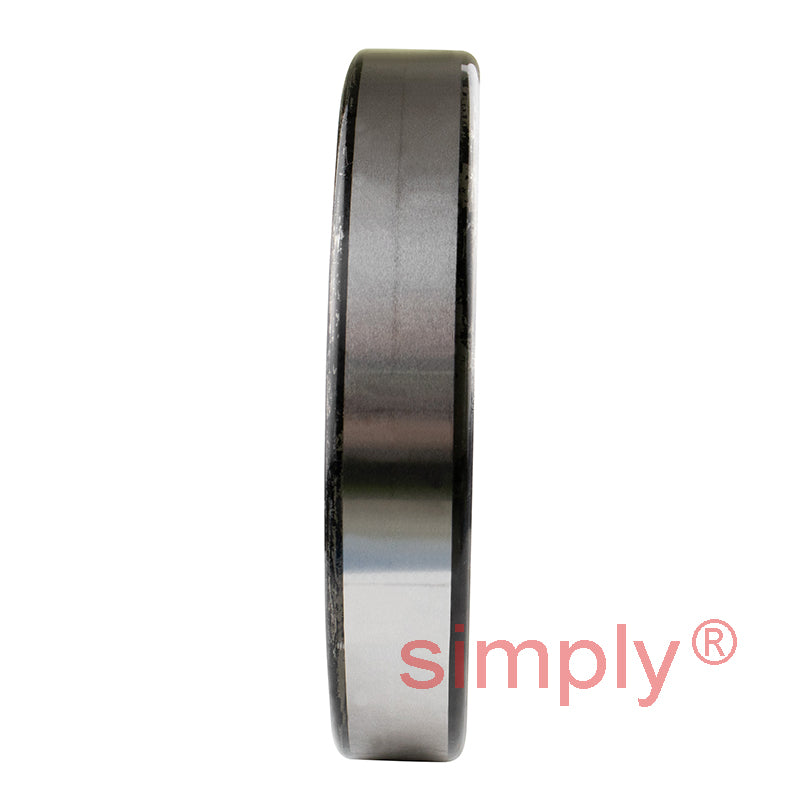

NTN 6013 Open Type Deep Groove Ball Bearing 65x100x18mm
NTN 6013 Open Type Deep Groove Ball Bearing 65x100x18mm
Regular price
CHF 57.00
ex VAT
Regular price
Sale price
CHF 57.00
ex VAT
Equivalent to: 6013CM 9113K 9113 113KS 6113 3L13 EL65 ELL65
In stock
Price Break
3+
CHF 44.64
5+
CHF 42.13
10+
CHF 41.63
25+
CHF 41.13
49+
CHF 40.63
74+
CHF 40.13
99+
CHF 37.62
199+
CHF 37.12
249+
CHF 36.62
499+
CHF 36.12
999+
CHF 35.11
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6013CM 9113K 9113 113KS 6113 3L13 EL65 ELL65
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 100mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 34 kN |
| C<sub>or</sub> | 25.2 kN |
| C<sub>u</sub> | 1.83 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 6500 rpm |
| Oil | 7700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 71.5mm |
| D<sub>a</sub> Max. | 93.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.421 kg |
