SKU: 6014-2RSR-C3-FAG

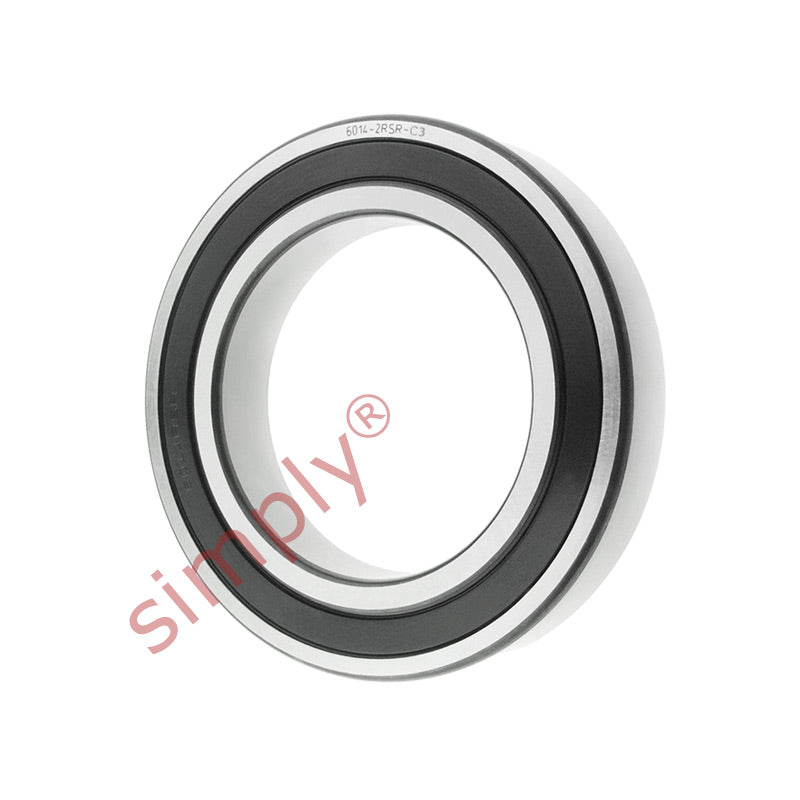

FAG 60142RSRC3 Rubber Sealed Deep Groove Ball Bearing 70x110x20mm
FAG 60142RSRC3 Rubber Sealed Deep Groove Ball Bearing 70x110x20mm
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
Equivalent to: 6014NSEC3 6014DUC3 6014RSC3 6014RSHC3 6014PC3 6014RSRC3 6014LUC3 60142NSEC3 6014DDUC3 60142RSC3 60142RS1C3 60142RSHC3 6014PPC3 6014LLU
In stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6014NSEC3 6014DUC3 6014RSC3 6014RSHC3 6014PC3 6014RSRC3 6014LUC3 60142NSEC3 6014DDUC3 60142RSC3 60142RS1C3 60142RSHC3 6014PPC3 6014LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| Dynamic load C | 39.7 kN |
| Static load Co | 31 kN |
| Fatigue load limit Pu | 1.32 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 3600 rpm |
| Mass | 0.6 kg |
| d1 | 82.9mm |
| d2 | 99.9mm |
| D2 | -mm |
| r1r2 min | 1.1mm |
| da min | 76 |
