SKU: 6014LLUNR/2AS-NTN

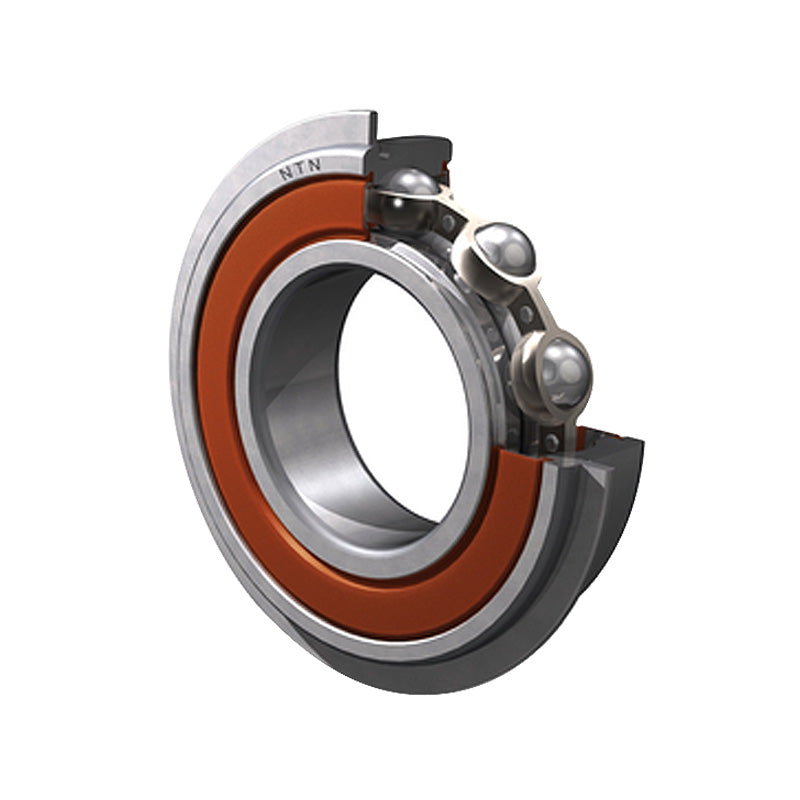

NTN 6014LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 70x110x20mm
Equivalent to: 6014LLUNRCM 6014LLUNR 6014NSENR 6014DUNR 6014RSNR 6014RSHNR 6014PNR 6014RSRNR 6014LUNR 60142NSENR 6014DDUNR 60142RSNR 6014-2RSNR 60142RS1NR 60142RSHNR 6014PPNR 60142RSRNR 6014LLUNR 6014RS2NR 60142RS2NR 60142RSLNR 6014LFSNR 6014EENR 9114NPPG 114KSZZG Z4993L14
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 110mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 42 kN |
| C<sub>or</sub> | 31 kN |
| C<sub>u</sub> | 2.3 kN |
| f<sub>0</sub> | 15.6 |
| --- | Fitting Dimensions |
| Speed | 3600rpm |
| D<sub>1</sub> Max. | 106.81mm |
| a Max. | 2.87mm |
| b Min. | 2.7mm |
| r<sub>o</sub> Max. | 0.6mm |
