SKU: 6014LU-NTN

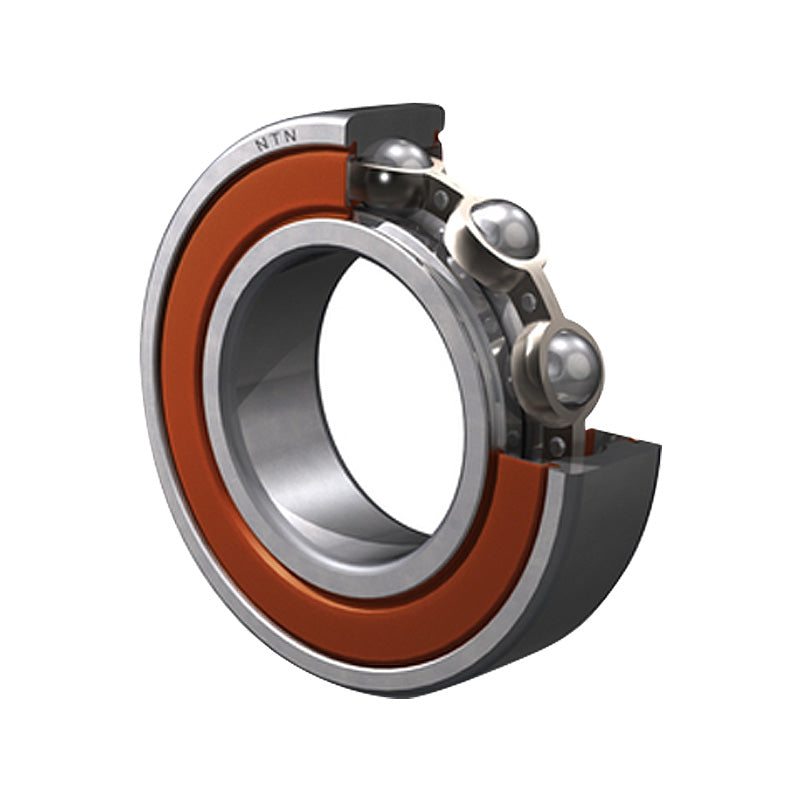

NTN 6014LU One Contact Rubber Seal Type Deep Groove Ball Bearing 70x110x20mm
NTN 6014LU One Contact Rubber Seal Type Deep Groove Ball Bearing 70x110x20mm
Regular price
CHF 93.00
ex VAT
Regular price
Sale price
CHF 93.00
ex VAT
In stock
Price Break
3+
CHF 73.85
5+
CHF 69.70
10+
CHF 68.87
25+
CHF 68.04
49+
CHF 67.21
74+
CHF 66.38
99+
CHF 62.24
199+
CHF 61.41
249+
CHF 60.58
499+
CHF 59.75
999+
CHF 58.09
Share this product
Description
Description
This bearing has one sided rubber sealed and one open side.
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- Open and Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 110mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 42 Kn |
| C<sub>or</sub> | 31 kN |
| C<sub>u</sub> | 2.3 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 3600 rpm |
| --- | Fitting Dimensions |
| Oil | 76.5 rpm |
| d<sub>a</sub> Min. | 80.5mm |
| D<sub>a</sub> Max. | 103.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.604 kg |
