SKU: 6015L1C3-NTN

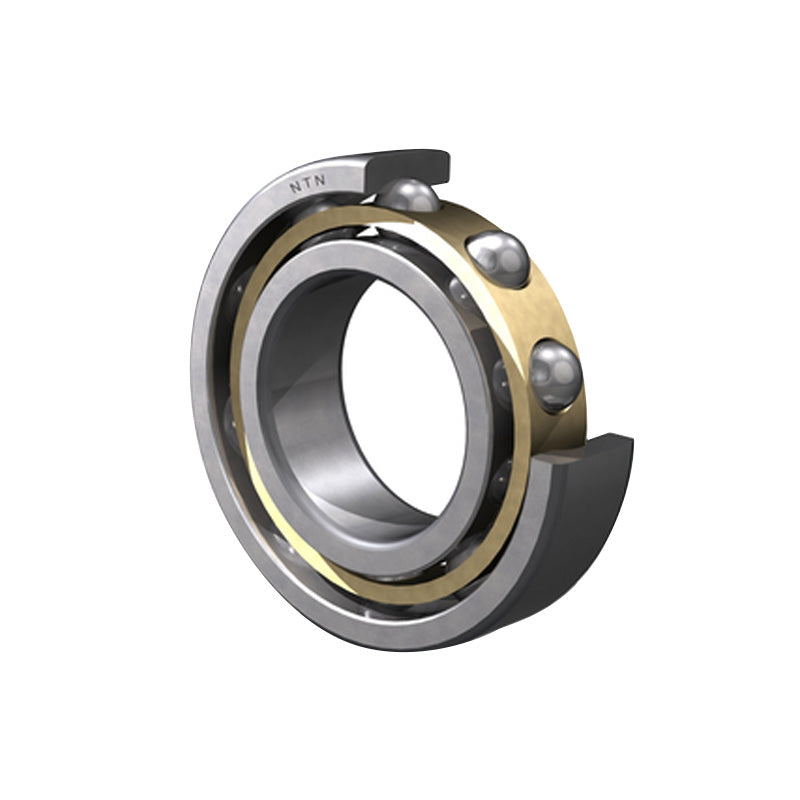

NTN 6015L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 75x115x20mm
NTN 6015L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 75x115x20mm
Regular price
CHF 88.22
ex VAT
Regular price
Sale price
CHF 88.22
ex VAT
In stock
Price Break
10+
CHF 78.52
19+
CHF 74.10
29+
CHF 73.22
39+
CHF 72.34
49+
CHF 71.46
74+
CHF 70.58
99+
CHF 66.17
199+
CHF 65.28
249+
CHF 64.40
499+
CHF 63.52
999+
CHF 61.75
Couldn't load pickup availability
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 115mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 115mm |
| B | 20mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 44 Kn |
| C<sub>or</sub> | 33.5 kN |
| C<sub>u</sub> | 2.44 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 5700 rpm |
| Oil | 6700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 81.5mm |
| D<sub>a</sub> Max. | 108.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.649 kg |
