SKU: 6016-2Z-EU

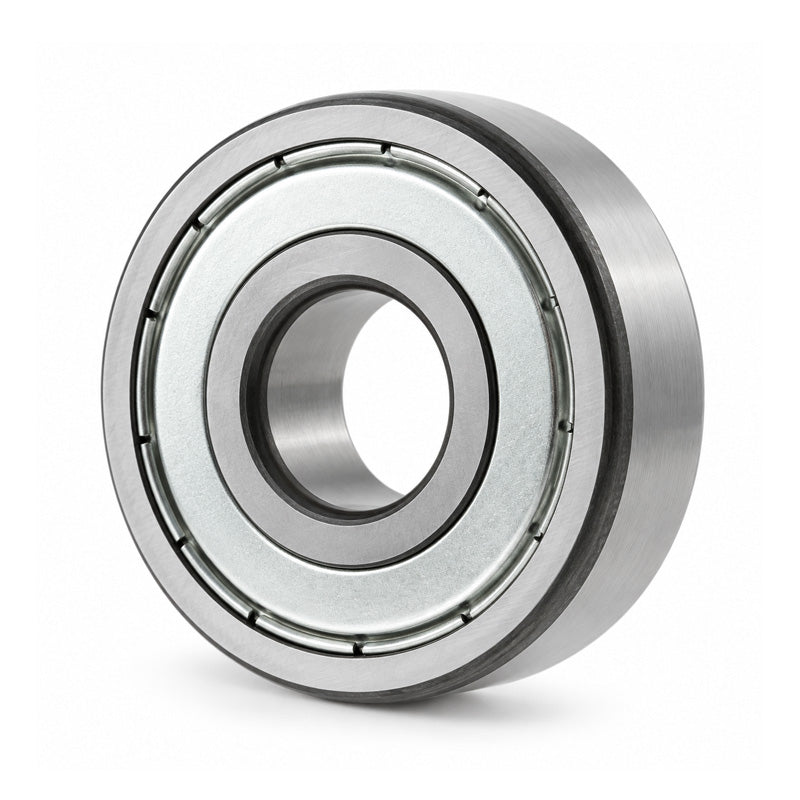

6016ZZ Budget Metal Shielded Deep Groove Ball Bearing 80x125x22mm
Equivalent to: 6016ZZ 60162Z 6016ZZ 60162ZR 6016ZZE 6016FF 6016DD 6016DDC 6016KDDC EL802Z EL80ZZ 9116KDD 9116FF 116KSFF 773L16 6116PP
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6016ZZ 60162Z 6016ZZ 60162ZR 6016ZZE 6016FF 6016DD 6016DDC 6016KDDC EL802Z EL80ZZ 9116KDD 9116FF 116KSFF 773L16 6116PP
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| r min | 1.1mm |
| Dynamic load Cr | 47.6 kN |
| Static load Cor | 39.8 kN |
| Speed in grease | 5300 rpm |
| Speed in oil | 6300 rpm |
