SKU: 6016-NSK

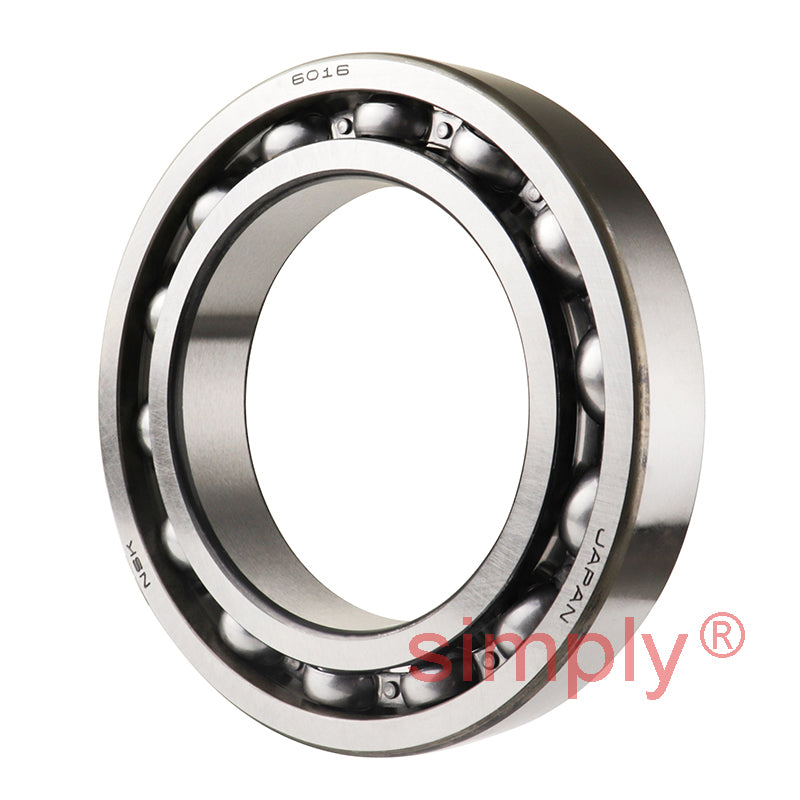

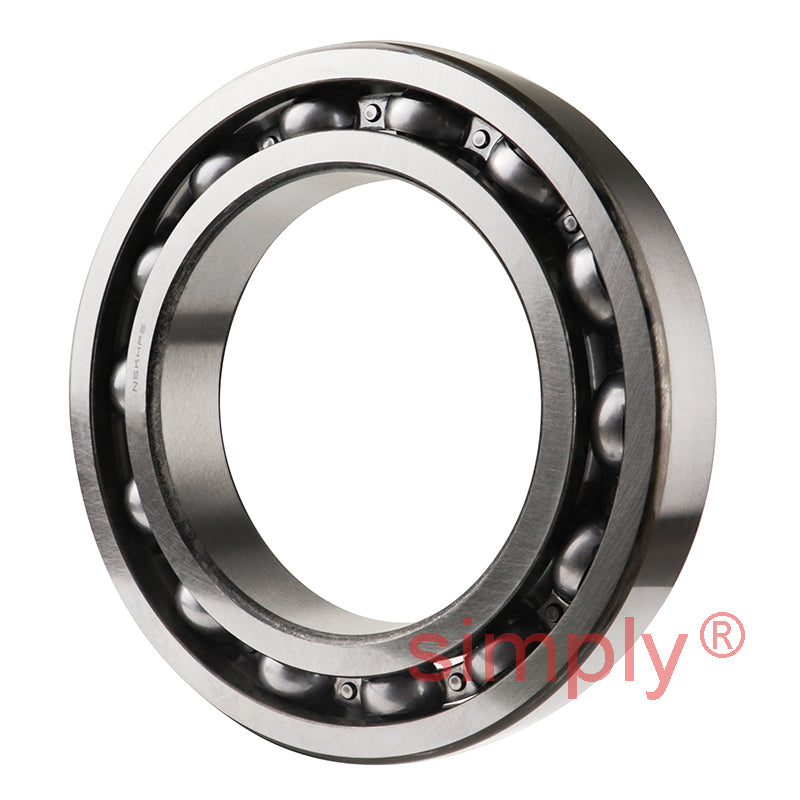

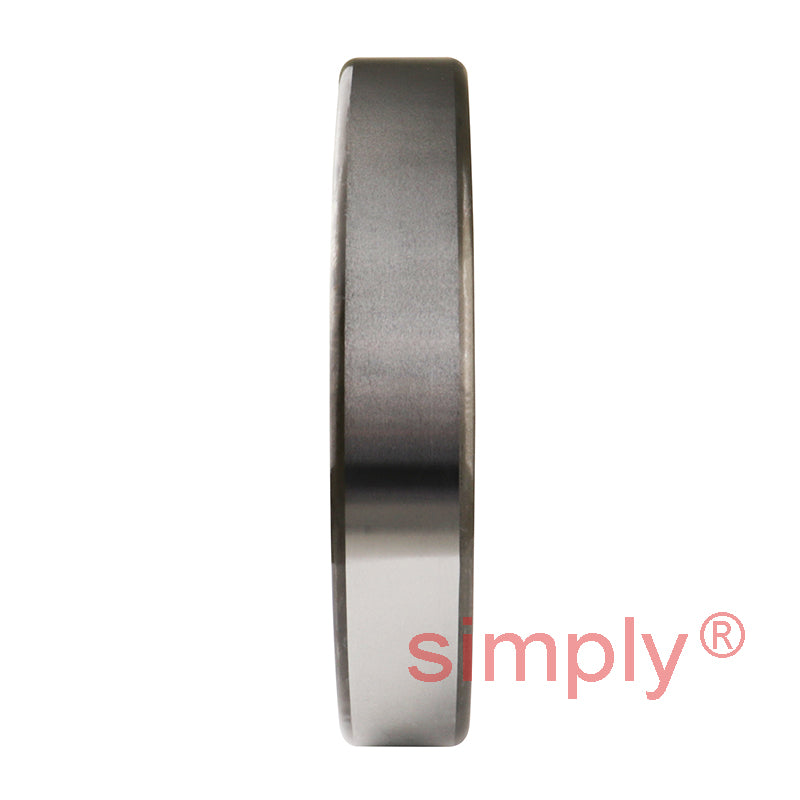

NSK 6016 Open Type Deep Groove Ball Bearing 80x125x22mm
NSK 6016 Open Type Deep Groove Ball Bearing 80x125x22mm
Regular price
CHF 57.35
ex VAT
Regular price
Sale price
CHF 57.35
ex VAT
In stock
Price Break
10+
CHF 51.04
19+
CHF 48.17
29+
CHF 47.60
39+
CHF 47.03
49+
CHF 46.45
74+
CHF 45.88
99+
CHF 43.01
199+
CHF 42.44
249+
CHF 41.87
499+
CHF 41.29
999+
CHF 40.15
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| r min | 1.1mm |
| Dynamic load Cr | 47500 N (4850 kgf) |
| Static load Cor | 40000 N (4050 kgf) |
| Factor | 15.6 |
| Speed in grease | 5300 rpm |
| Speed in oil | 6300 rpm |
| Mass | 0.872 kg |
