SKU: 6016NR-SKF

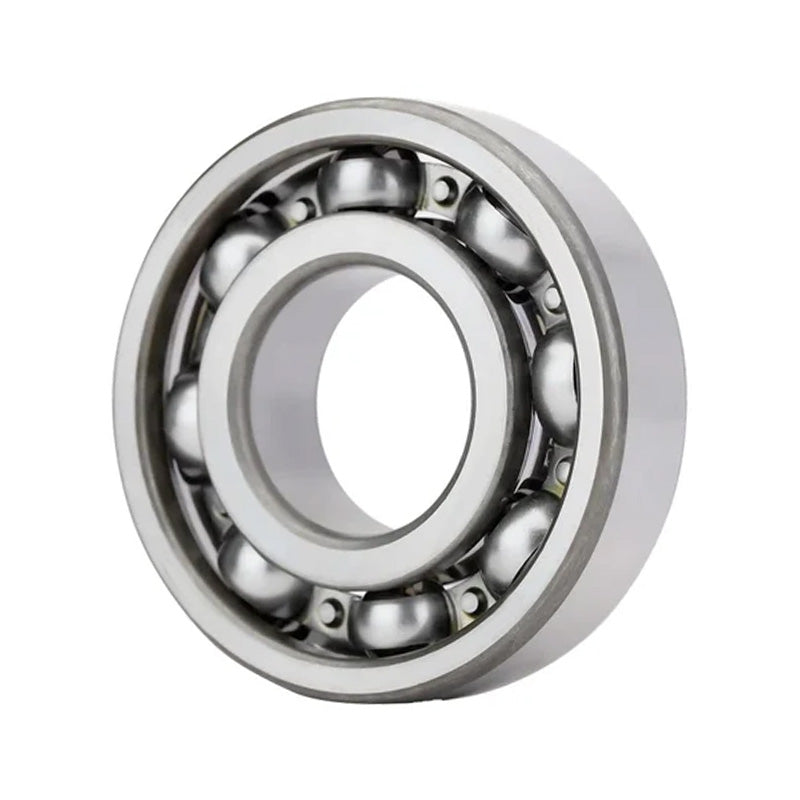

SKF 6016NR Open Type Snap Ring Deep Groove Bearing 80x125x22mm
SKF 6016NR Open Type Snap Ring Deep Groove Bearing 80x125x22mm
Regular price
CHF 205.56
ex VAT
Regular price
Sale price
CHF 205.56
ex VAT
In stock
Price Break
10+
CHF 182.95
19+
CHF 172.67
29+
CHF 170.61
39+
CHF 168.56
49+
CHF 166.50
74+
CHF 164.45
99+
CHF 154.17
199+
CHF 152.11
249+
CHF 150.06
499+
CHF 148.00
999+
CHF 143.89
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 40 kN |
| Fatigue load limit Pu | 1.66 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 0.85kg |
| Snap ring | SP 125 |
| d1 | 94.4mm |
| D2 | 115mm |
| D3 | 120.22mm |
| D4 | 134.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 2.87mm |
| r1r2 min | 1.1mm |
| ro max | 0.6mm |
| da min | 86mm |
| Da max | 119mm |
| Db min | 136mm |
| ba min | 3.5mm |
| Ca max | 5.69mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
