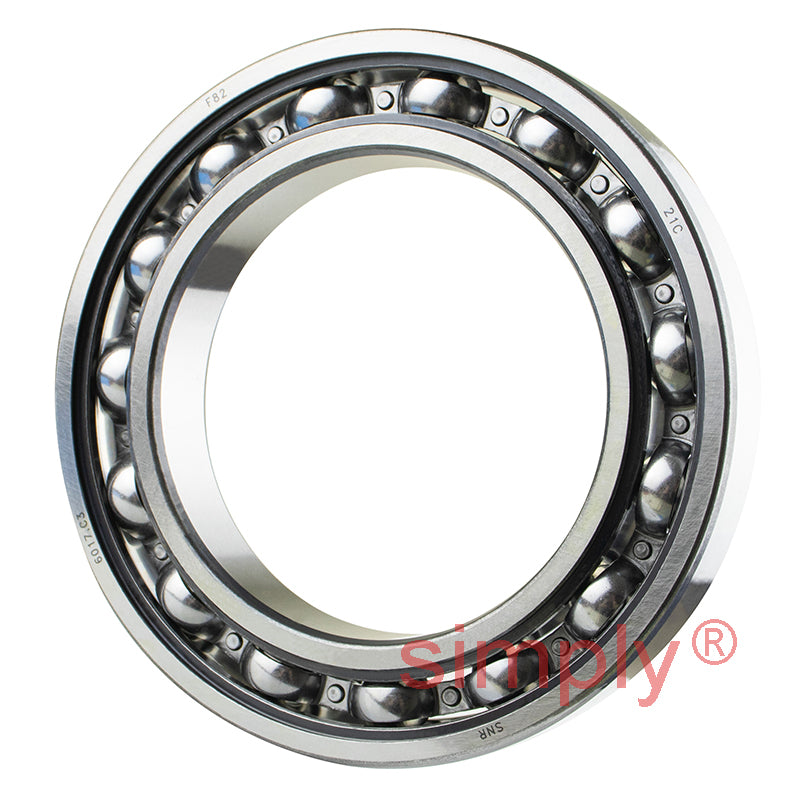

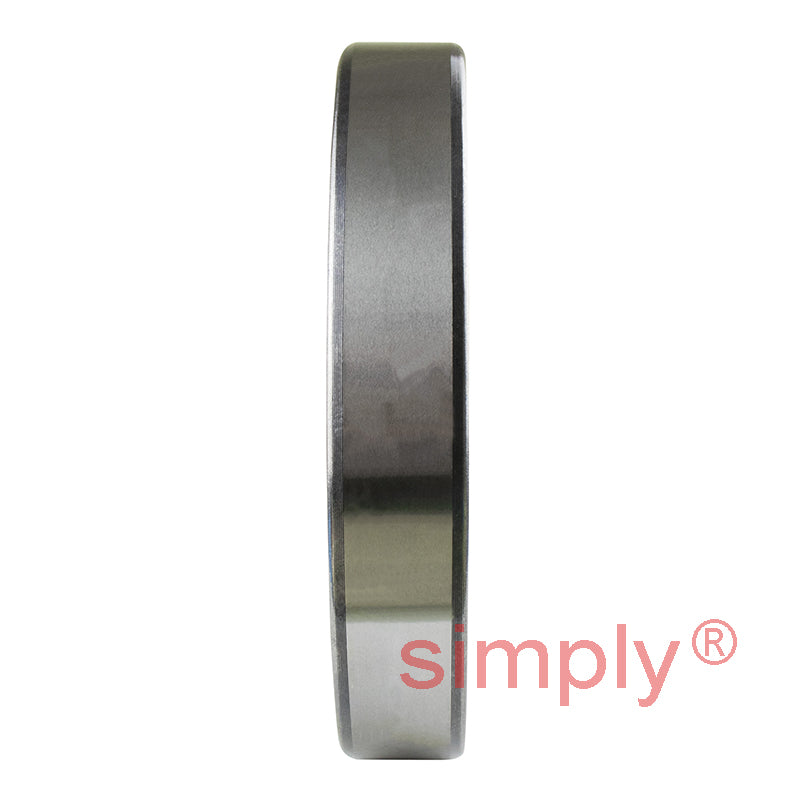

NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm
NTN 6017 Open Type Deep Groove Ball Bearing 85x130x22mm
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
Equivalent to: 6017CM 9117K 9117 117KS 6117 3L17 EL85 ELL85
In stock
Price Break
3+
CHF 62.50
5+
CHF 58.99
10+
CHF 58.29
25+
CHF 57.59
49+
CHF 56.89
74+
CHF 56.18
99+
CHF 52.67
199+
CHF 51.97
249+
CHF 51.27
499+
CHF 50.57
999+
CHF 49.16
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6017CM 9117K 9117 117KS 6117 3L17 EL85 ELL85
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 130mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 85mm |
| D | 130mm |
| B | 22mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 55 kN |
| C<sub>or</sub> | 43 kN |
| C<sub>u</sub> | 3 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 5000 rpm |
| Oil | 5900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 91.5mm |
| D<sub>a</sub> Max. | 123.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.89 kg |
