SKU: 6019-2Z-EU

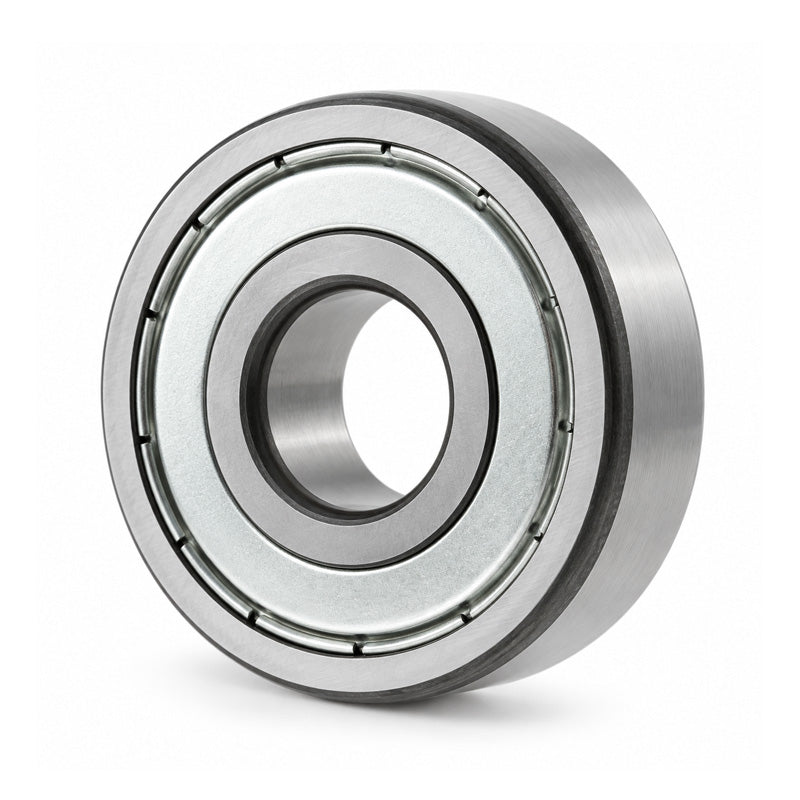

6019ZZ Budget Metal Shielded Deep Groove Ball Bearing 95x145x24mm
Equivalent to: 6019ZZ 60192Z 6019ZZ 60192ZR 6019ZZE 6019FF 6019DD 6019DDC 6019KDDC EL952Z EL95ZZ 9119KDD 9119FF 119KSFF 773L19 6119PP
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6019ZZ 60192Z 6019ZZ 60192ZR 6019ZZE 6019FF 6019DD 6019DDC 6019KDDC EL952Z EL95ZZ 9119KDD 9119FF 119KSFF 773L19 6119PP
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 95mm |
|---|---|
| D | 145mm |
| B | 24mm |
| r min | 1.5mm |
| Dynamic load Cr | 60.4 kN |
| Static load Cor | 53.9 kN |
| Speed in grease | 4400 rpm |
| Speed in oil | 5200 rpm |
