SKU: 6019/C4-SKF

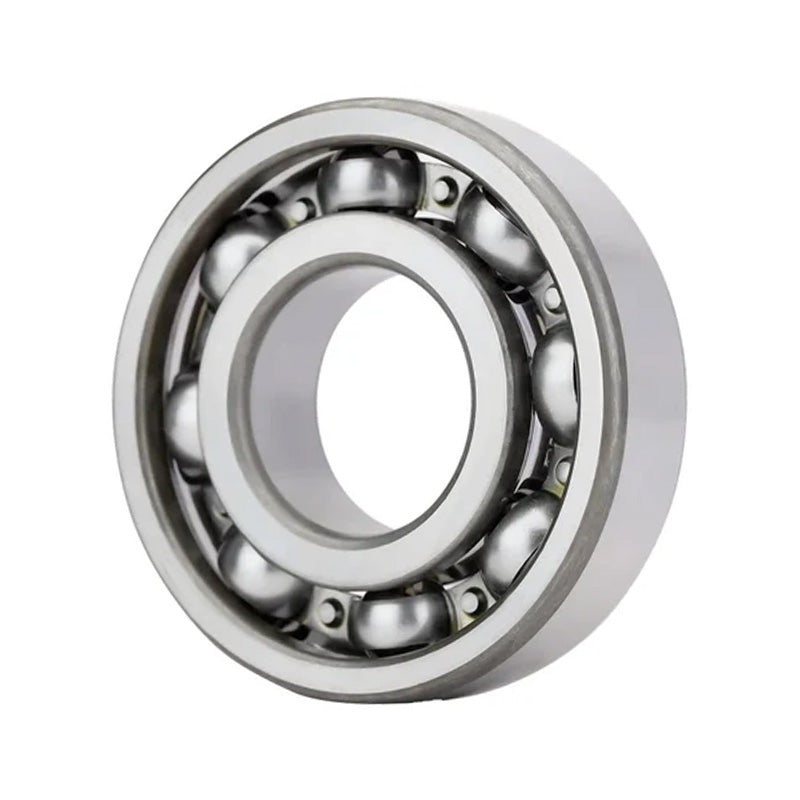

SKF 6019C4 Open Deep Groove Ball Bearing 95x145x24mm
SKF 6019C4 Open Deep Groove Ball Bearing 95x145x24mm
Regular price
CHF 178.69
ex VAT
Regular price
Sale price
CHF 178.69
ex VAT
In stock
Price Break
10+
CHF 159.03
19+
CHF 150.10
29+
CHF 148.31
39+
CHF 146.53
49+
CHF 144.74
74+
CHF 142.95
99+
CHF 134.02
199+
CHF 132.23
249+
CHF 130.44
499+
CHF 128.66
999+
CHF 125.08
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 145mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 95mm |
|---|---|
| D | 145mm |
| B | 24mm |
| Dynamic load | 63.7 kN |
| Static load | 54 kn |
| Fatigue load limit Pu | 2.08 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.2 kg |
| d1 | 111mm |
| D1 | 129mm |
| D2 | 133mm |
| r1r2 min | .1.5mm |
| da min | 102mm |
| Da max | 138mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 16 |
