SKU: 6020/C3-NACHI

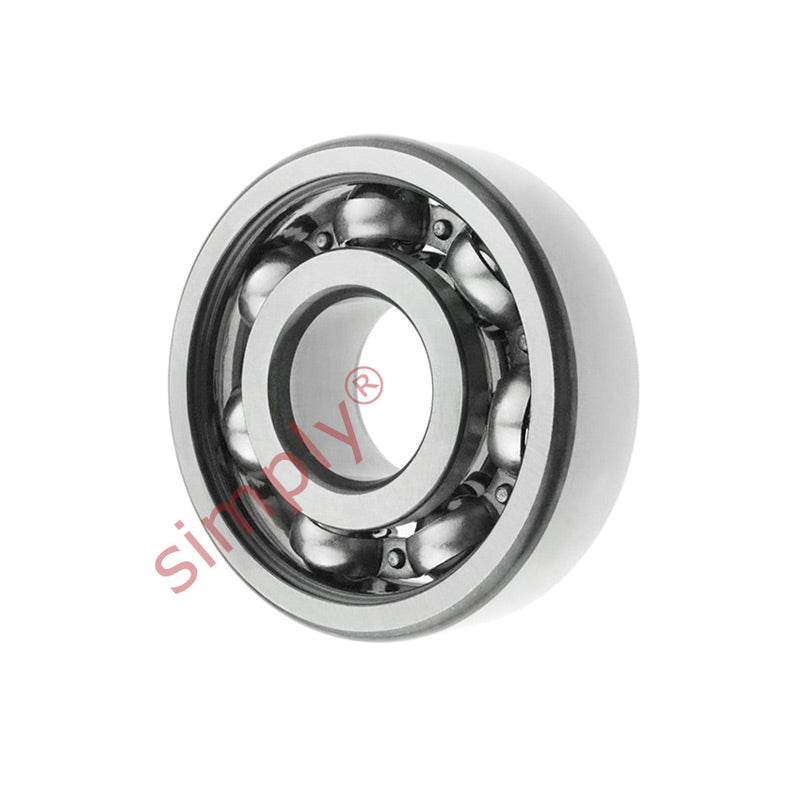

NACHI 6020C3 Open Deep Groove Ball Bearing 100x150x24mm
NACHI 6020C3 Open Deep Groove Ball Bearing 100x150x24mm
Regular price
CHF 105.00
ex VAT
Regular price
Sale price
CHF 105.00
ex VAT
In stock
Price Break
5+
CHF 83.05
9+
CHF 78.39
19+
CHF 77.45
29+
CHF 76.52
49+
CHF 75.59
74+
CHF 74.65
99+
CHF 69.99
199+
CHF 69.05
249+
CHF 68.12
499+
CHF 67.19
999+
CHF 65.32
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 100mm |
|---|---|
| Outside Diameter D | 150mm |
| Width B | 24mm |
| Min radius r | 1.5mm |
| Dynamic load | 60000 kN |
| Static load | 54000 kN |
| Max speed in oil | 5300 rpm |
| Max speed in grease | 4300 rpm |
| da min | 107mm |
| Da max | 143mm |
| ra max | 1.5mm |
| Weight | 1.26 kg |
