SKU: 6020-MB

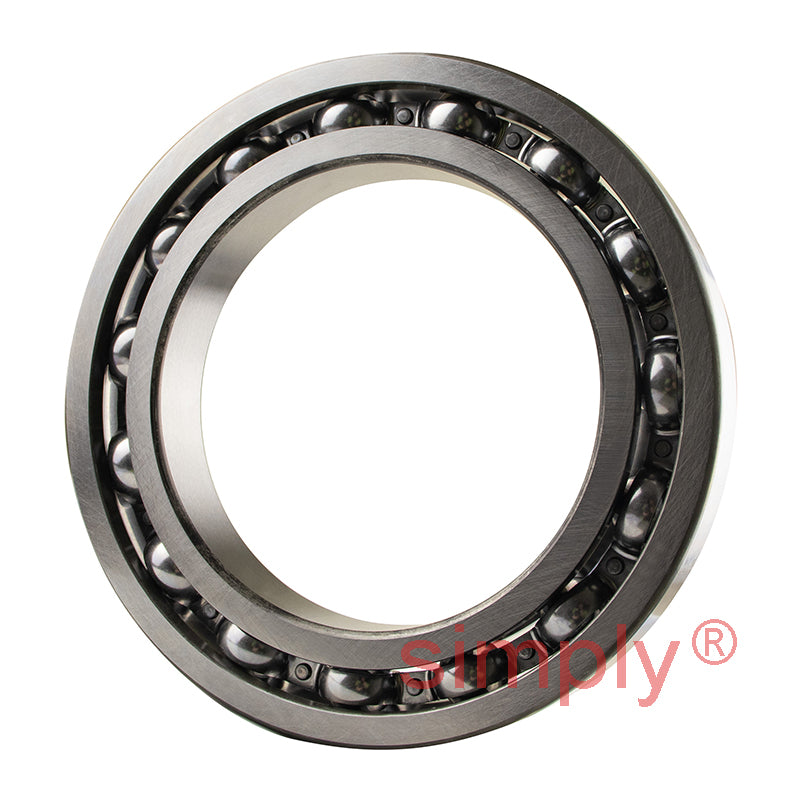

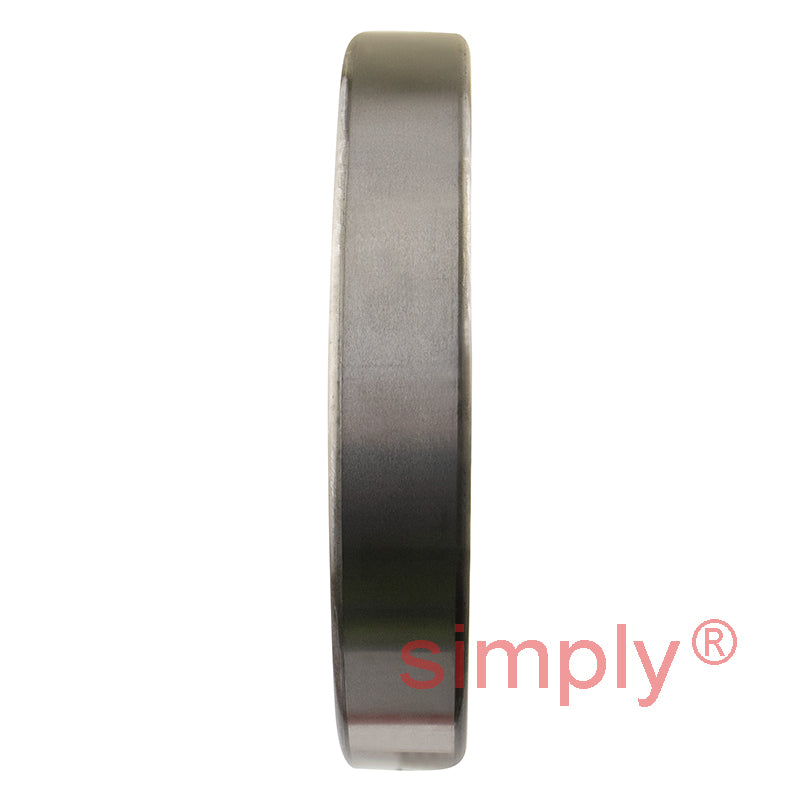

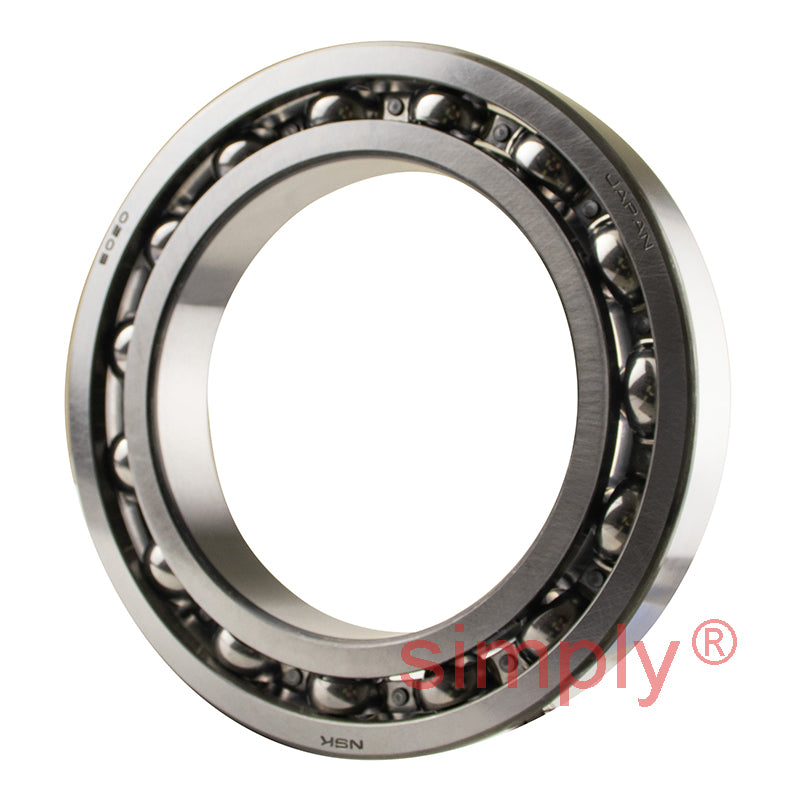

Major Brand 6020 Open Deep Groove Ball Bearing 100x150x24mm
Major Brand 6020 Open Deep Groove Ball Bearing 100x150x24mm
Regular price
CHF 97.51
ex VAT
Regular price
Sale price
CHF 97.51
ex VAT
In stock
Price Break
10+
CHF 86.78
19+
CHF 81.91
29+
CHF 80.93
39+
CHF 79.96
49+
CHF 78.98
74+
CHF 78.01
99+
CHF 73.13
199+
CHF 72.16
249+
CHF 71.18
499+
CHF 70.21
999+
CHF 68.26
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 24mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 54 kN |
| Fatigue load limit Pu | 2.04 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 5600 rpm |
| Mass | 1.25 kg |
| d1 | 116mm |
| D1 | 134mm |
| D2 | 138mm |
| r1r2 min | 1.5mm |
| da min | 107mm |
| Da max | 143mm |
| ra max | 1.5mm |
| Calc factor Kr | 0.025 |
| Calc factor | 16 |
