SKU: 6020LU-NTN

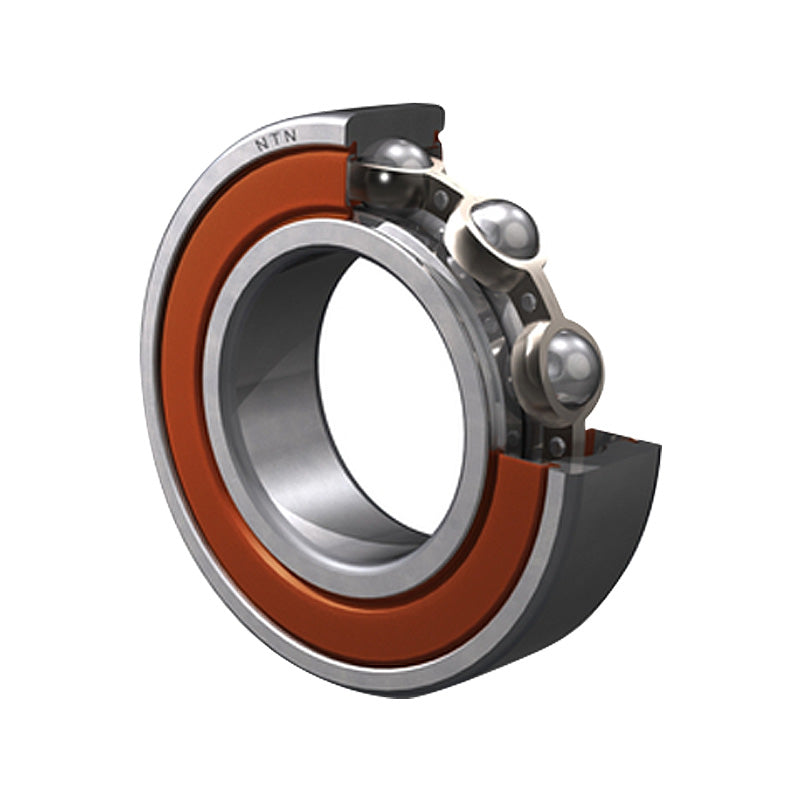

NTN 6020LU One Contact Rubber Seal Type Deep Groove Ball Bearing 100x150x24mm
NTN 6020LU One Contact Rubber Seal Type Deep Groove Ball Bearing 100x150x24mm
Regular price
CHF 220.00
ex VAT
Regular price
Sale price
CHF 220.00
ex VAT
In stock
Price Break
3+
CHF 175.05
5+
CHF 165.21
10+
CHF 163.24
25+
CHF 161.28
49+
CHF 159.31
74+
CHF 157.34
99+
CHF 147.51
199+
CHF 145.54
249+
CHF 143.58
499+
CHF 141.61
999+
CHF 137.68
Share this product
Description
Description
This bearing has one sided rubber sealed and one open side.
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- Open and Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 150mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 Kn |
| C<sub>or</sub> | 54 kN |
| C<sub>u</sub> | 3.5 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 2600 rpm |
| --- | Fitting Dimensions |
| Oil | 108 rpm |
| d<sub>a</sub> Min. | 110mm |
| D<sub>a</sub> Max. | 142mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 1.15 kg |
