SKU: 6020NR-SKF

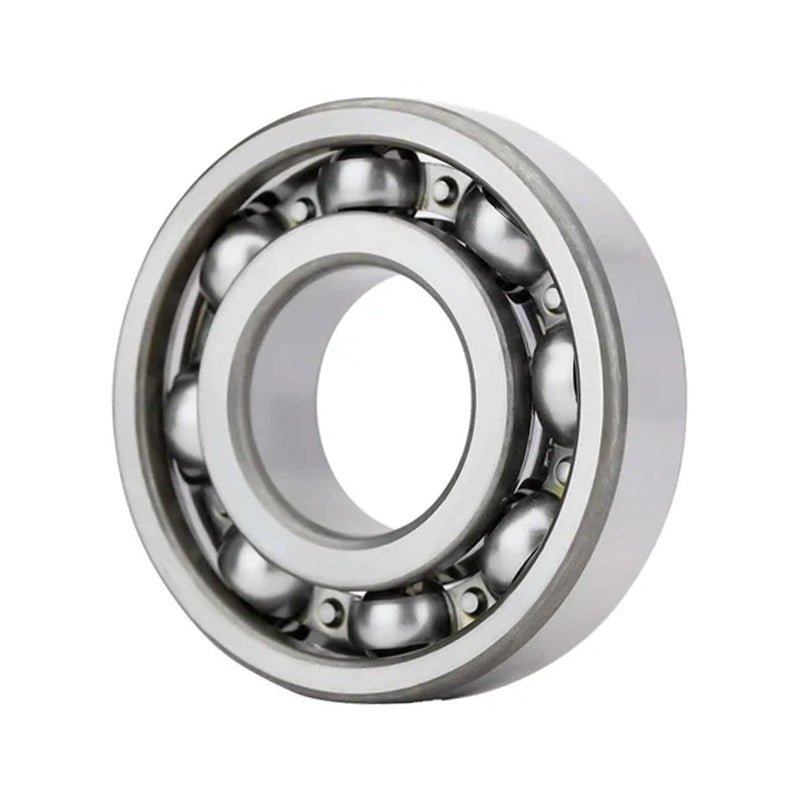

SKF 6020NR Open Type Snap Ring Deep Groove Bearing 100x150x24mm
SKF 6020NR Open Type Snap Ring Deep Groove Bearing 100x150x24mm
Regular price
CHF 277.00
ex VAT
Regular price
Sale price
CHF 277.00
ex VAT
In stock
Price Break
4+
CHF 220.38
10+
CHF 208.00
20+
CHF 205.52
30+
CHF 203.05
50+
CHF 200.57
75+
CHF 198.10
100+
CHF 185.71
200+
CHF 183.24
250+
CHF 180.76
500+
CHF 178.29
1000+
CHF 173.33
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| B | 24mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 54 kN |
| Fatigue load limit Pu | 2.04 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.25kg |
| Snap ring | SP 150 |
| d1 | 115mm |
| D2 | 139mm |
| D3 | 145.24mm |
| D4 | 159.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 3.71mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da min | 107mm |
| Da max | 143mm |
| Db min | 162mm |
| ba min | 3.5mm |
| Ca max | 6.53mm |
| ra max | 1.5mm |
| Calc Factor kr | 0.025 |
| fo | 16 |
