SKU: 6021-MB

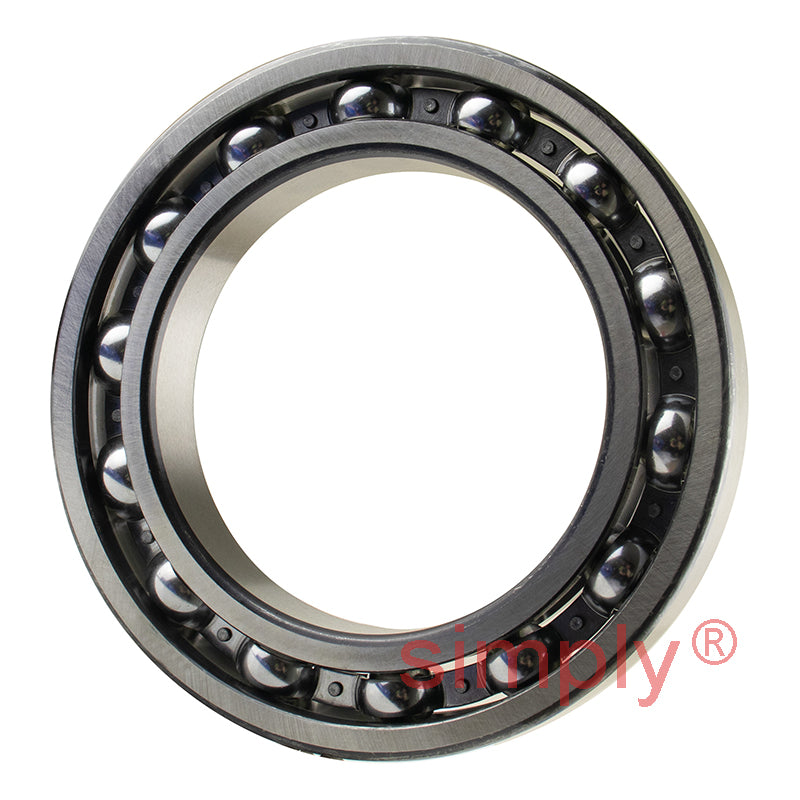

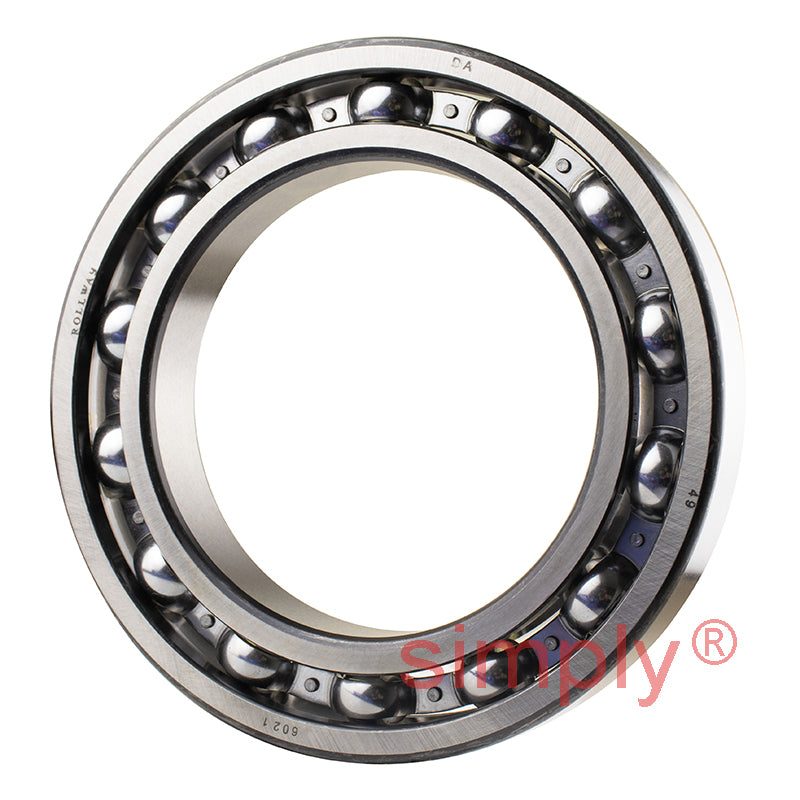

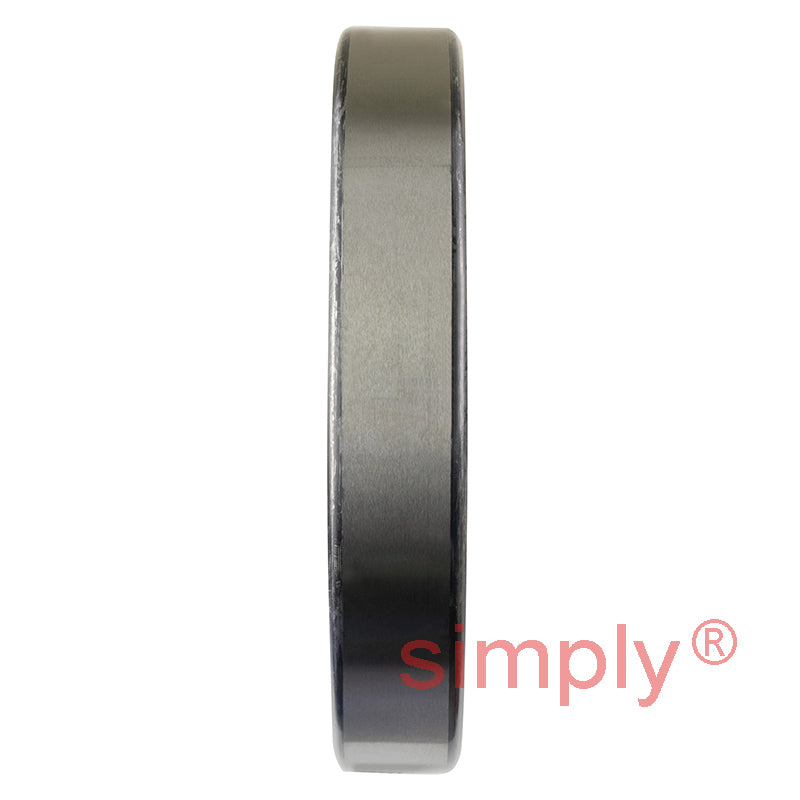

Major Brand 6021 Open Deep Groove Ball Bearing 105x160x26mm
Major Brand 6021 Open Deep Groove Ball Bearing 105x160x26mm
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
10+
CHF 42.87
19+
CHF 40.46
29+
CHF 39.98
39+
CHF 39.50
49+
CHF 39.02
74+
CHF 38.54
99+
CHF 36.13
199+
CHF 35.65
249+
CHF 35.16
499+
CHF 34.68
999+
CHF 33.72
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 160mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 105mm |
|---|---|
| D | 160mm |
| B | 26mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 65.5 kN |
| Fatigue load limit Pu | 2.4 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 5300 rpm |
| Mass | 1.6 kg |
| d1 | 123mm |
| D1 | 143mm |
| D2 | 147mm |
| r1r2 min | 2mm |
| da min | 116mm |
| Da max | 149mm |
| ra max | 2mm |
| Calc factor Kr | 0.025 |
| Calc factor | 16 |
