SKU: 6021C3-NTN

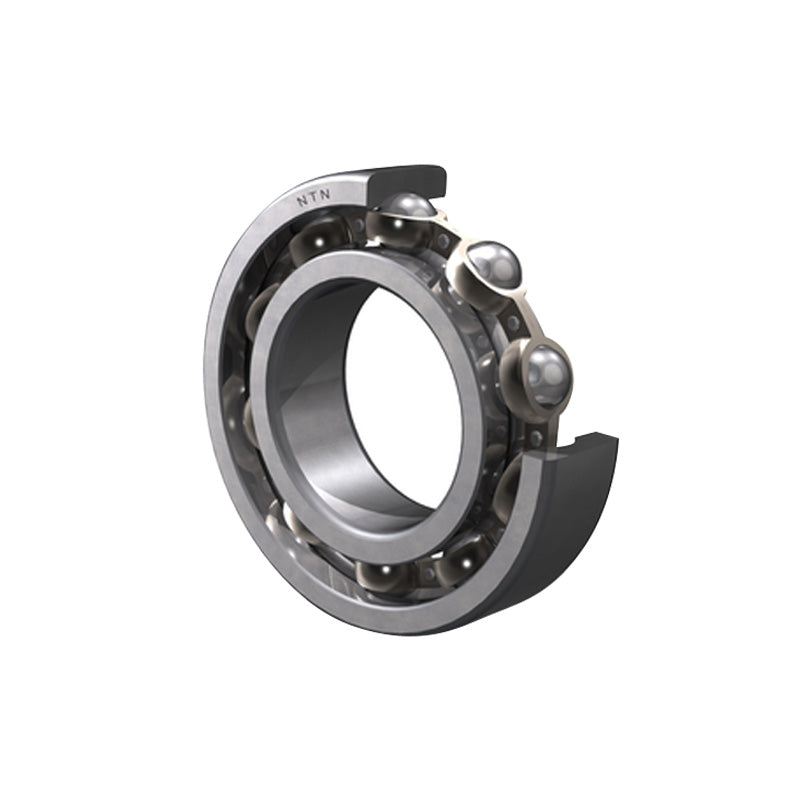

NTN 6021C3 Open Type Deep Groove Ball Bearing 105x160x26mm
NTN 6021C3 Open Type Deep Groove Ball Bearing 105x160x26mm
Regular price
CHF 169.00
ex VAT
Regular price
Sale price
CHF 169.00
ex VAT
Equivalent to: 9121KC3 9121C3 121KSC3 6121C3 3L21C3 EL105C3 ELL105C3
In stock
Price Break
3+
CHF 134.67
5+
CHF 127.11
10+
CHF 125.60
25+
CHF 124.08
49+
CHF 122.57
74+
CHF 121.06
99+
CHF 113.49
199+
CHF 111.98
249+
CHF 110.46
499+
CHF 108.95
999+
CHF 105.92
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 9121KC3 9121C3 121KSC3 6121C3 3L21C3 EL105C3 ELL105C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 160mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 105mm |
| D | 160mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 65.5 kN |
| C<sub>u</sub> | 4.15 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 4000 rpm |
| Oil | 4700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 114mm |
| D<sub>a</sub> Max. | 151mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.59 kg |
