SKU: 6022-2RS1/C3-SKF

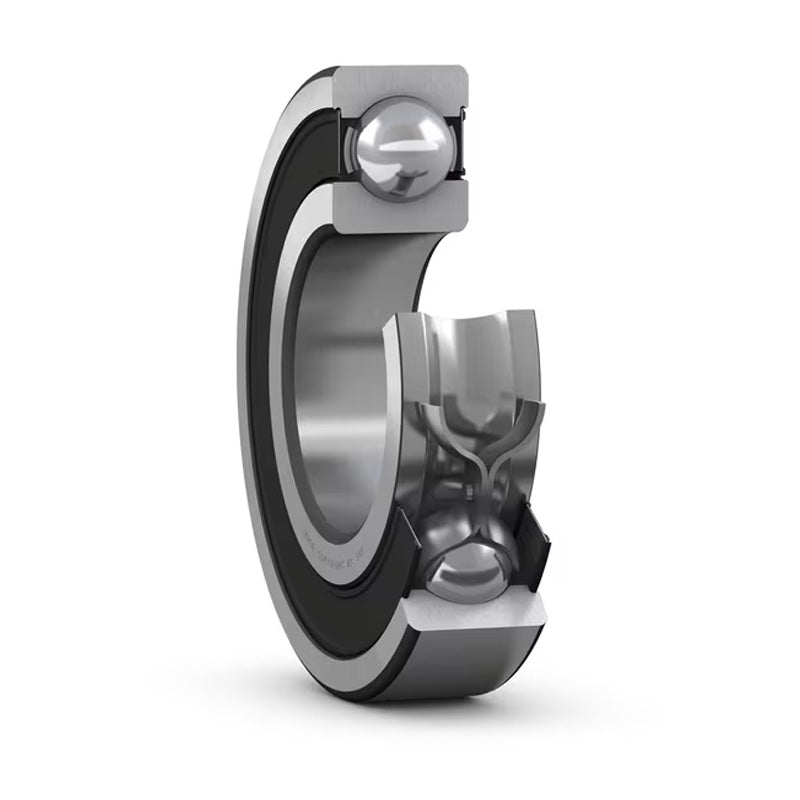

SKF 60222RS1C3 Rubber Sealed Deep Groove Ball Bearing 110x170x28mm
SKF 60222RS1C3 Rubber Sealed Deep Groove Ball Bearing 110x170x28mm
Regular price
CHF 203.00
ex VAT
Regular price
Sale price
CHF 203.00
ex VAT
Equivalent to: 6022NSEC3 6022DUC3 6022RSC3 6022RSHC3 6022PC3 6022RSRC3 6022LUC3 60222NSEC3 6022DDUC3 60222RSC3 60222RSHC3 6022PPC3 60222RSRC3 6022LLU
In stock
Price Break
4+
CHF 161.28
10+
CHF 152.22
20+
CHF 150.41
30+
CHF 148.60
50+
CHF 146.79
75+
CHF 144.97
100+
CHF 135.91
200+
CHF 134.10
250+
CHF 132.29
500+
CHF 130.48
1000+
CHF 126.85
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6022NSEC3 6022DUC3 6022RSC3 6022RSHC3 6022PC3 6022RSRC3 6022LUC3 60222NSEC3 6022DDUC3 60222RSC3 60222RSHC3 6022PPC3 60222RSRC3 6022LLU
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| B | 28mm |
| Dynamic load C | 85.2 kN |
| Static load Co | 73.5 kN |
| Fatigue load limit Pu | 2.4 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 2400 rpm |
| Weight | 1.95 kg |
| d1 | 129mm |
| D2 | 155mm |
| r1r2 min | 2mm |
| da min | 119mm |
| Da max | 161mm |
| ra max | 2mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
