SKU: 6024-MB

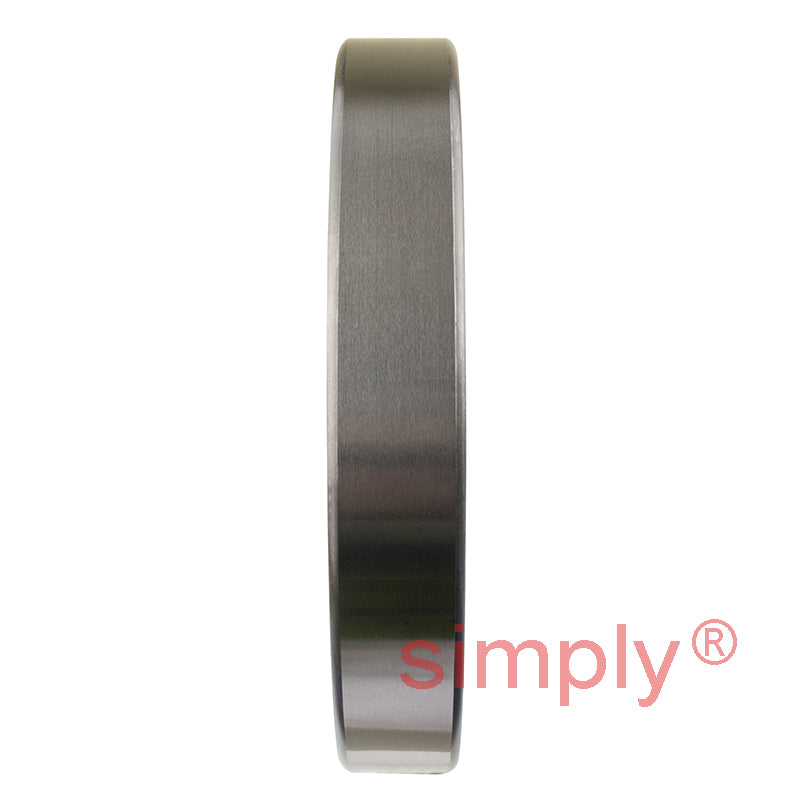

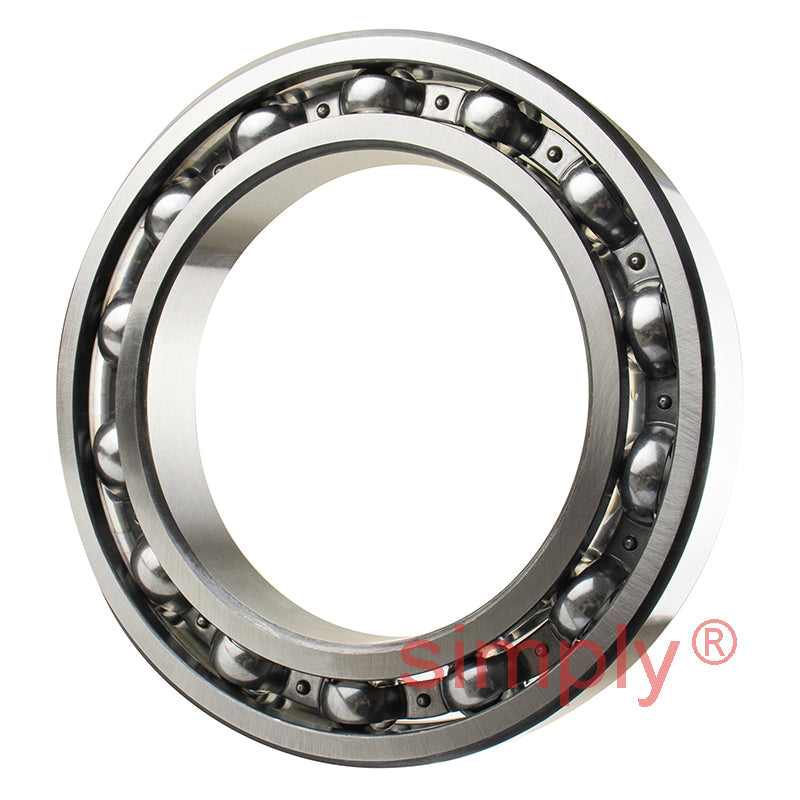

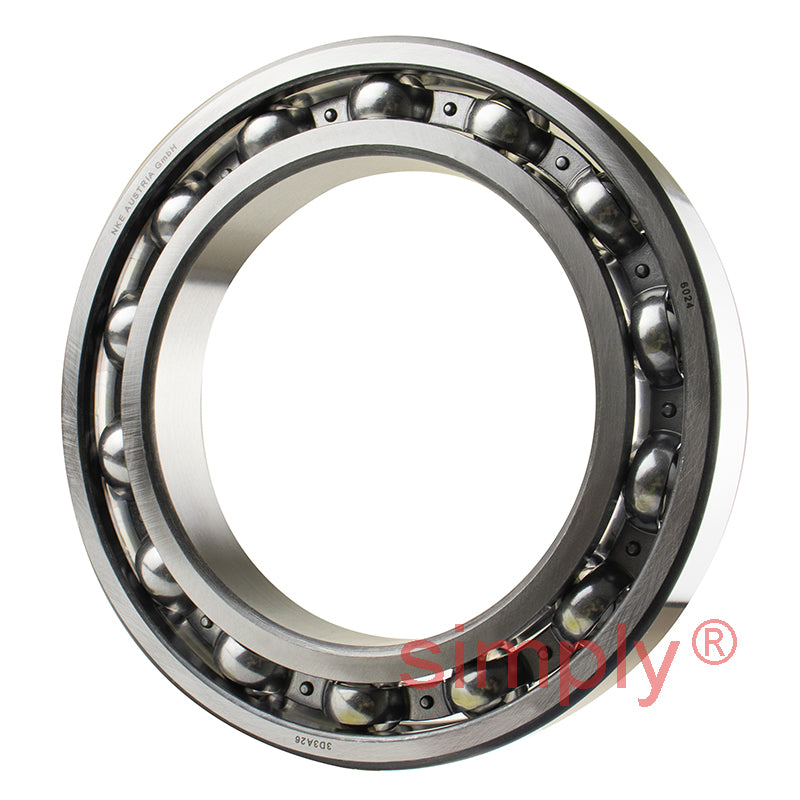

Major Brand 6024 Open Deep Groove Ball Bearing 120x180x28mm
Major Brand 6024 Open Deep Groove Ball Bearing 120x180x28mm
Regular price
CHF 147.00
ex VAT
Regular price
Sale price
CHF 147.00
ex VAT
In stock
Price Break
10+
CHF 117.18
19+
CHF 110.60
29+
CHF 109.28
39+
CHF 107.97
49+
CHF 106.65
74+
CHF 105.33
99+
CHF 98.75
199+
CHF 97.43
249+
CHF 96.12
499+
CHF 94.80
999+
CHF 92.17
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 28mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 80 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 4800 rpm |
| Mass | 2.05 kg |
| d1 | 139mm |
| D1 | 161mm |
| D2 | 165mm |
| r1r2 min | 2mm |
| da min | 129mm |
| Da max | 171mm |
| ra max | 2mm |
| Calc factor Kr | 0.025 |
| Calc factor | 16 |
