SKU: 6024L1C4-NTN

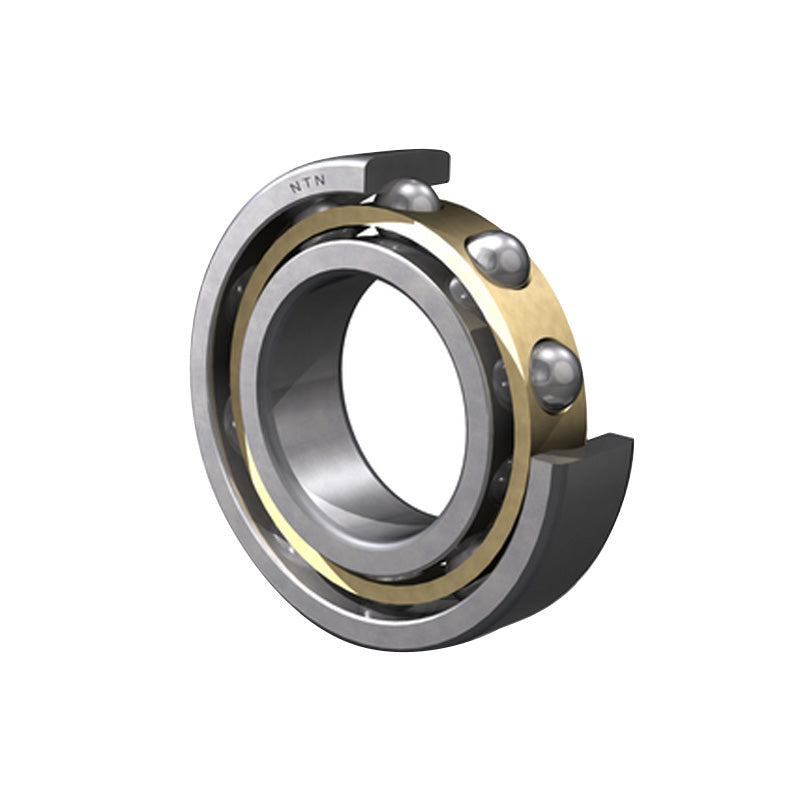

NTN 6024L1C4 Machined Brass Cage Open Type Deep Groove Ball Bearing 120x180x28mm
NTN 6024L1C4 Machined Brass Cage Open Type Deep Groove Ball Bearing 120x180x28mm
Regular price
CHF 184.81
ex VAT
Regular price
Sale price
CHF 184.81
ex VAT
In stock
Price Break
10+
CHF 164.48
19+
CHF 155.24
29+
CHF 153.39
39+
CHF 151.54
49+
CHF 149.70
74+
CHF 147.85
99+
CHF 138.61
199+
CHF 136.76
249+
CHF 134.91
499+
CHF 133.06
999+
CHF 129.37
Couldn't load pickup availability
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 180mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 94 Kn |
| C<sub>or</sub> | 79.5 kN |
| C<sub>u</sub> | 4.65 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 3500 rpm |
| Oil | 4100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 129mm |
| D<sub>a</sub> Max. | 171mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 2.07 kg |
