SKU: 6028L1C3-NTN

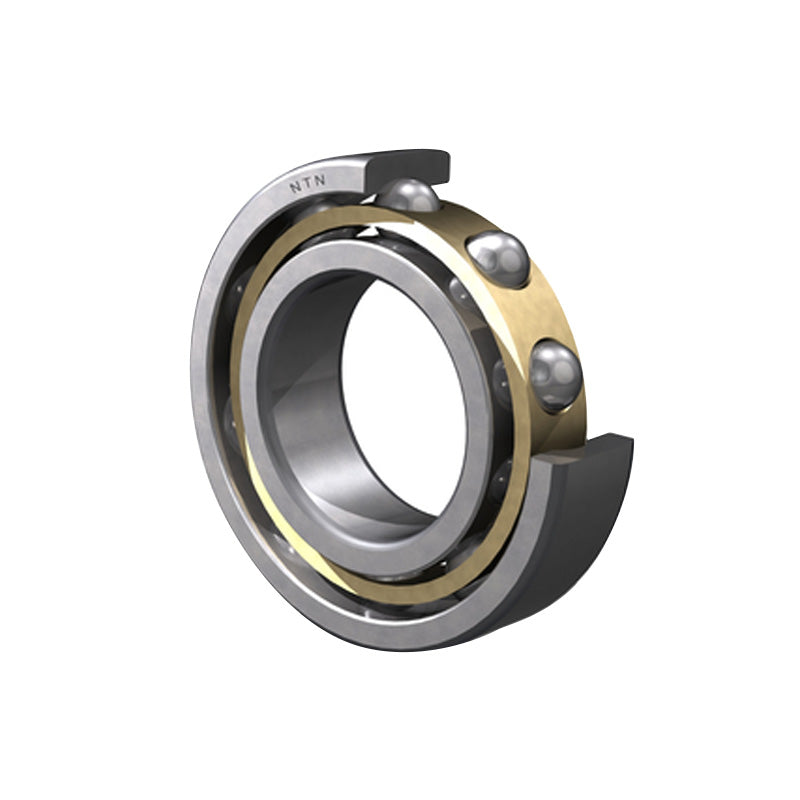

NTN 6028L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 140x210x33mm
NTN 6028L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 140x210x33mm
Regular price
CHF 265.00
ex VAT
Regular price
Sale price
CHF 265.00
ex VAT
In stock
Price Break
3+
CHF 210.69
5+
CHF 198.85
10+
CHF 196.49
25+
CHF 194.12
49+
CHF 191.75
74+
CHF 189.38
99+
CHF 177.55
199+
CHF 175.18
249+
CHF 172.81
499+
CHF 170.45
999+
CHF 165.71
Share this product
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 140mm |
| D | 210mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 122 Kn |
| C<sub>or</sub> | 109 kN |
| C<sub>u</sub> | 5.85 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 3000 rpm |
| Oil | 3500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 149mm |
| D<sub>a</sub> Max. | 201mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 3.35 kg |
