SKU: 6030L1-NTN

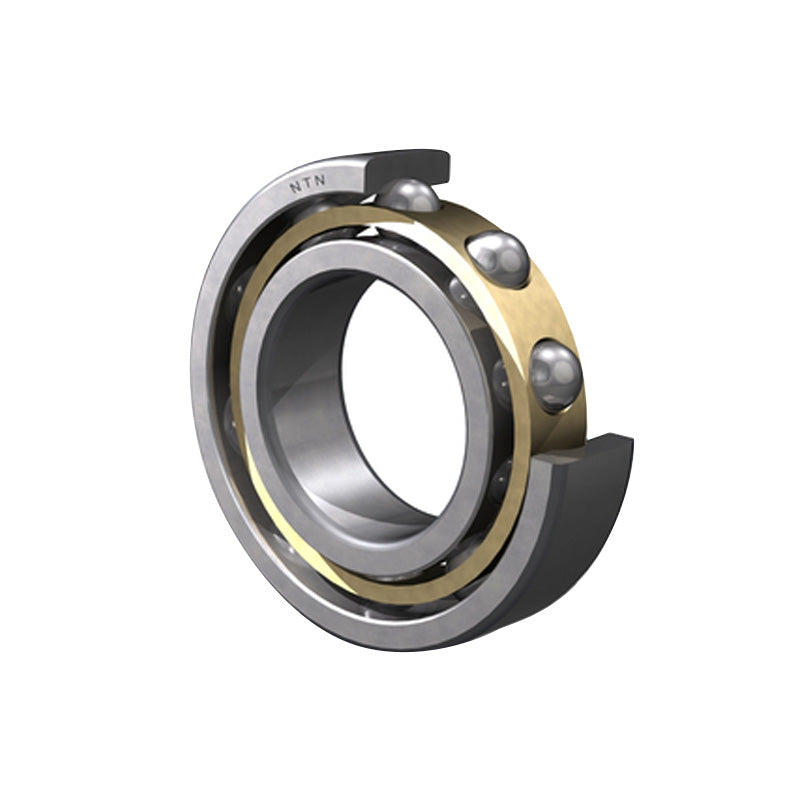

NTN 6030L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 150x225x35mm
NTN 6030L1 Machined Brass Cage Open Type Deep Groove Ball Bearing 150x225x35mm
Regular price
CHF 348.21
ex VAT
Regular price
Sale price
CHF 348.21
ex VAT
In stock
Price Break
10+
CHF 309.91
19+
CHF 292.50
29+
CHF 289.01
39+
CHF 285.53
49+
CHF 282.05
74+
CHF 278.57
99+
CHF 261.16
199+
CHF 257.68
249+
CHF 254.19
499+
CHF 250.71
999+
CHF 243.75
Couldn't load pickup availability
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 225mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 150mm |
| D | 225mm |
| B | 35mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 139 Kn |
| C<sub>or</sub> | 126 kN |
| C<sub>u</sub> | 6.55 kN |
| f<sub>0</sub> | 15.9 kN |
| Grease | 2800 rpm |
| Oil | 3200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 161mm |
| D<sub>a</sub> Max. | 214mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 4.08 kg |
