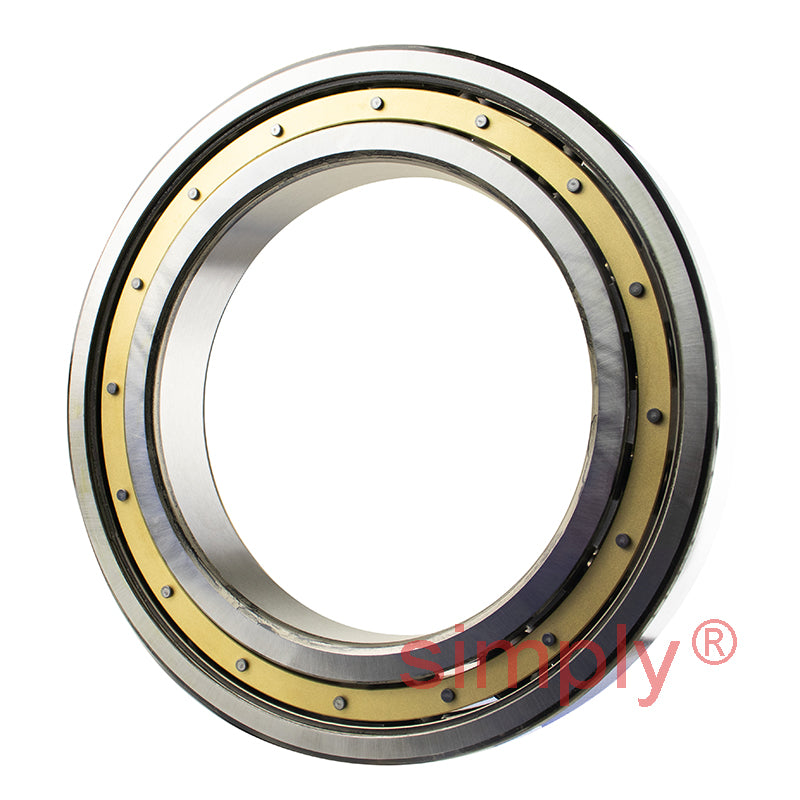

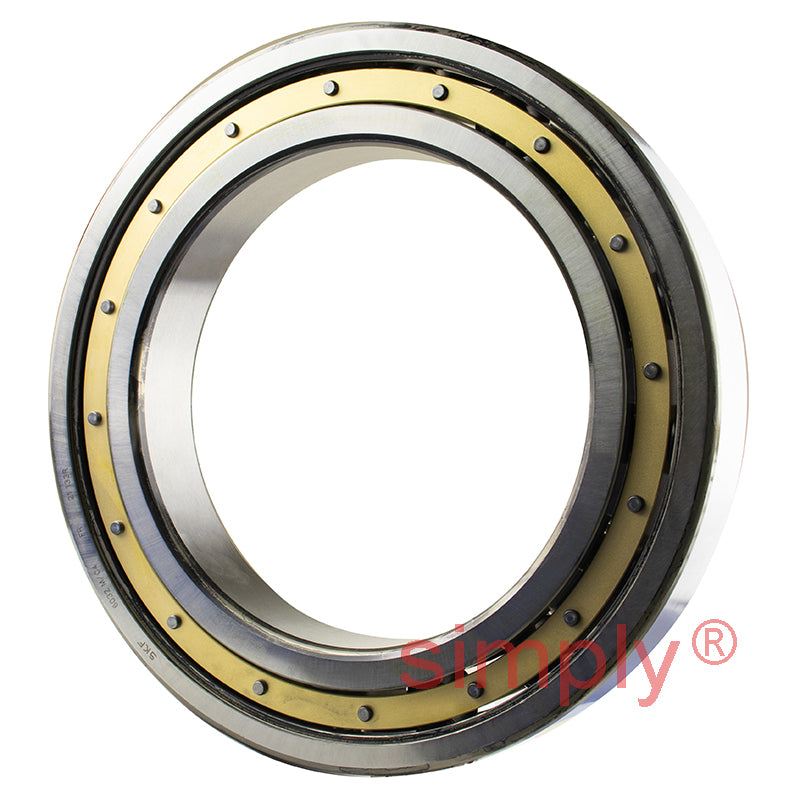

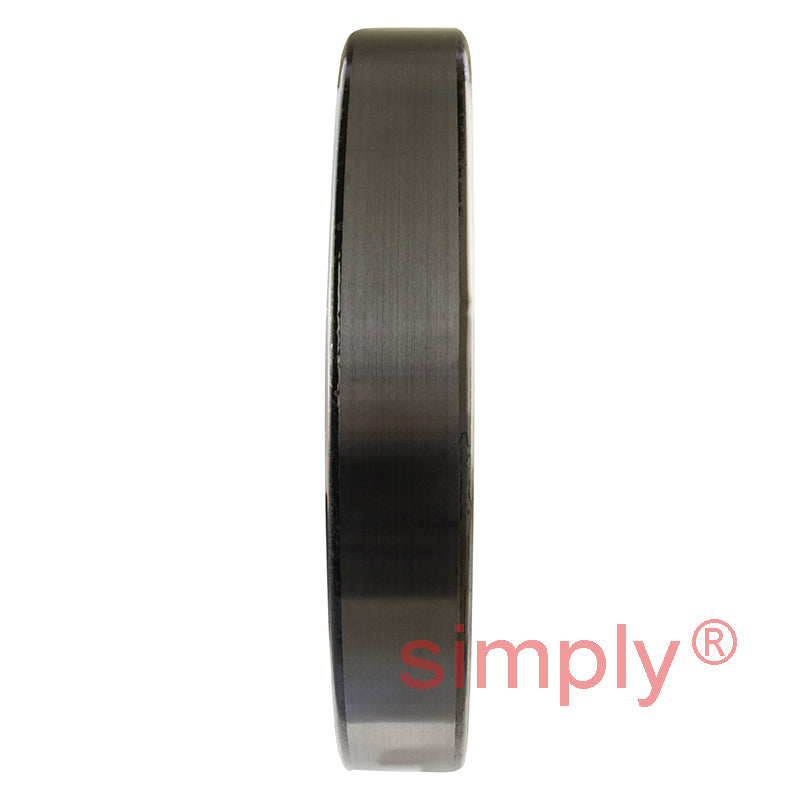

Major Brand 6032MC4 Open Deep Groove Ball Bearing 160x240x38mm
Major Brand 6032MC4 Open Deep Groove Ball Bearing 160x240x38mm
Regular price
CHF 869.00
ex VAT
Regular price
Sale price
CHF 869.00
ex VAT
In stock
Price Break
10+
CHF 691.61
19+
CHF 652.76
29+
CHF 644.99
39+
CHF 637.21
49+
CHF 629.44
74+
CHF 621.67
99+
CHF 582.82
199+
CHF 575.05
249+
CHF 567.28
499+
CHF 559.51
999+
CHF 543.96
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 240mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 160mm |
|---|---|
| D | 240mm |
| B | 38mm |
| Dynamic load C | 143 kN |
| Static load Co | 143 kN |
| Fatigue load limit Pu | 4.3 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 3600 rpm |
| Mass | 5.9 kg |
| d1 | 186mm |
| D1 | 214mm |
| r1r2 min | 2.1mm |
| da min | 169mm |
| Da max | 231mm |
| ra max | 2mm |
| Calc factor Kr | 0.025 |
| Calc factor | 16 |
