SKU: 61802-ZZ-CDX

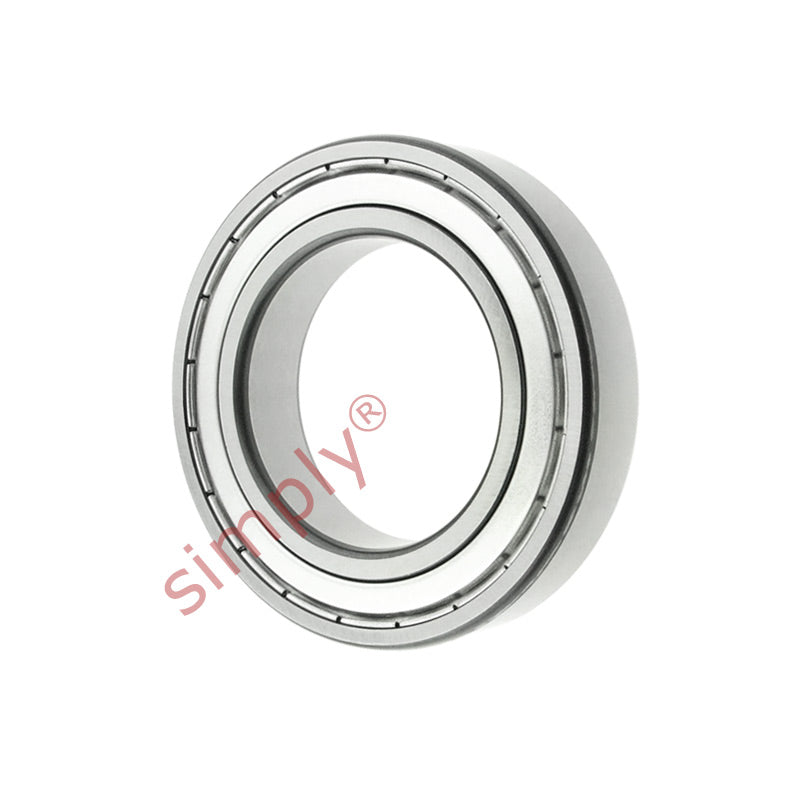

Codex 61802ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 61802ZZ 618022Z 618022ZR 61802ZZE 61802FF 61802DD 61802DDC 61802KDDC EL15ZZ EL152Z
In stock
Price Break
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61802ZZ 618022Z 618022ZR 61802ZZE 61802FF 61802DD 61802DDC 61802KDDC EL15ZZ EL152Z
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 15mm |
|---|---|
| D | 24mm |
| B | 5mm |
| Dynamic Load | 1.56 kN |
| Static Load | 0.8 kN |
| Fatigue Load Limit Pu | 0.034 |
| Reference Speed | 60000 rpm |
| Limiting Speed | 30000 rpm |
| Weight | 0.0074kg |
| d1 | 17.9mm |
| D2 | 22.1mm |
| r1r2 min | 0.3mm |
| da min | 17mm |
| Da max | 22mm |
| ra max | 0.3 |
| Calc factor kr | 0.015 |
| Calc factor Cor f0 | 10 |
