SKU: 61803-2RS-CDX

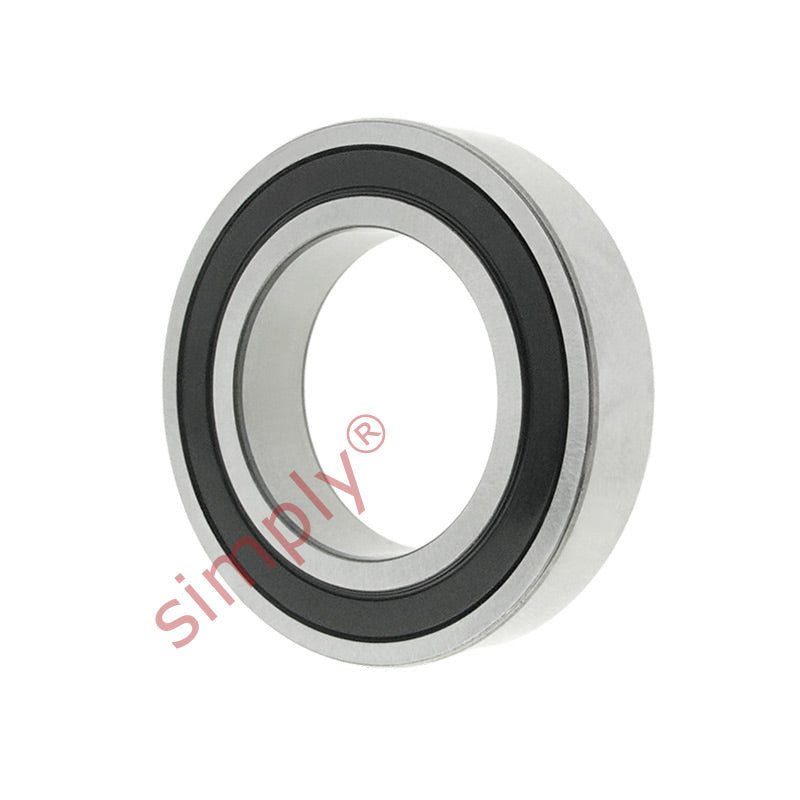

Codex 618032RS Rubber Sealed Thin Section Deep Groove Ball Bearing 17x26x5mm
Codex 618032RS Rubber Sealed Thin Section Deep Groove Ball Bearing 17x26x5mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
Equivalent to: 618032RS 618032RSH 618032RS1 618032RSR 618032RSL 61803LFS 61803EE 61803DU 61803LLU EL172RS 61803PP
In stock
Price Break
4+
CHF 6.03
10+
CHF 5.69
20+
CHF 5.62
30+
CHF 5.55
50+
CHF 5.49
75+
CHF 5.42
100+
CHF 5.08
200+
CHF 5.01
250+
CHF 4.94
500+
CHF 4.88
1000+
CHF 4.74
Share this product
Description
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 618032RS 618032RSH 618032RS1 618032RSR 618032RSL 61803LFS 61803EE 61803DU 61803LLU EL172RS 61803PP
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| Dynamic Load | 1.68 kN |
| Static Load | 0.93 kN |
| Fatigue Load limit Pu | 0.039 |
| Reference Speed | 56000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.164kg |
| d1 | -mm |
| D2 | 24.1mm |
| r1r2 | 0.3mm |
| da min | 19mm |
| Da max | 24mm |
| ra max | 0.3mm |
| Calc Factor kr | 0.015 |
| Calc Factor Cor f0 | 10 |
