SKU: 61807-2Z-EU

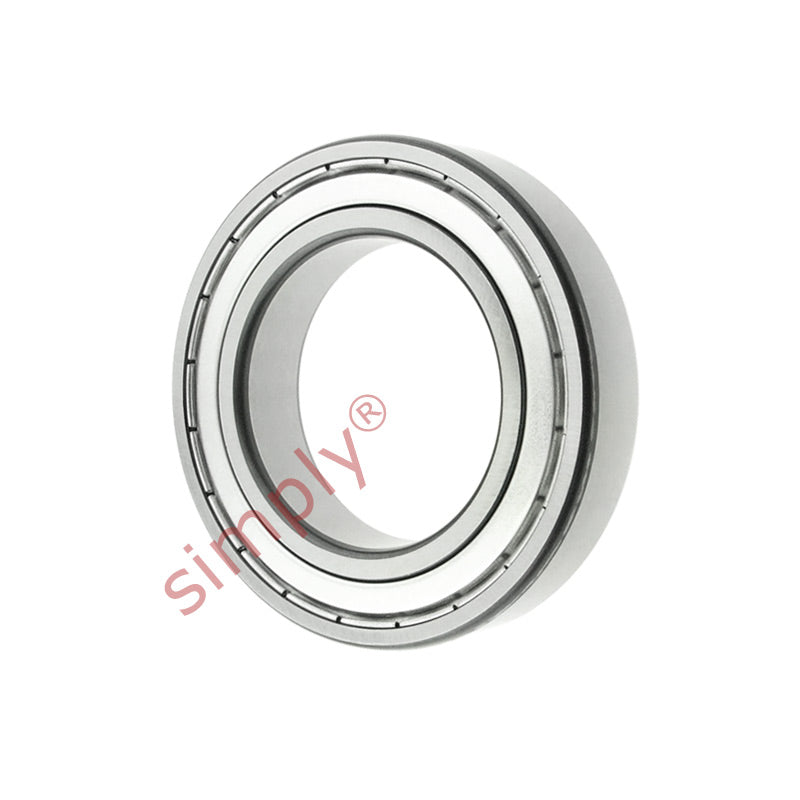

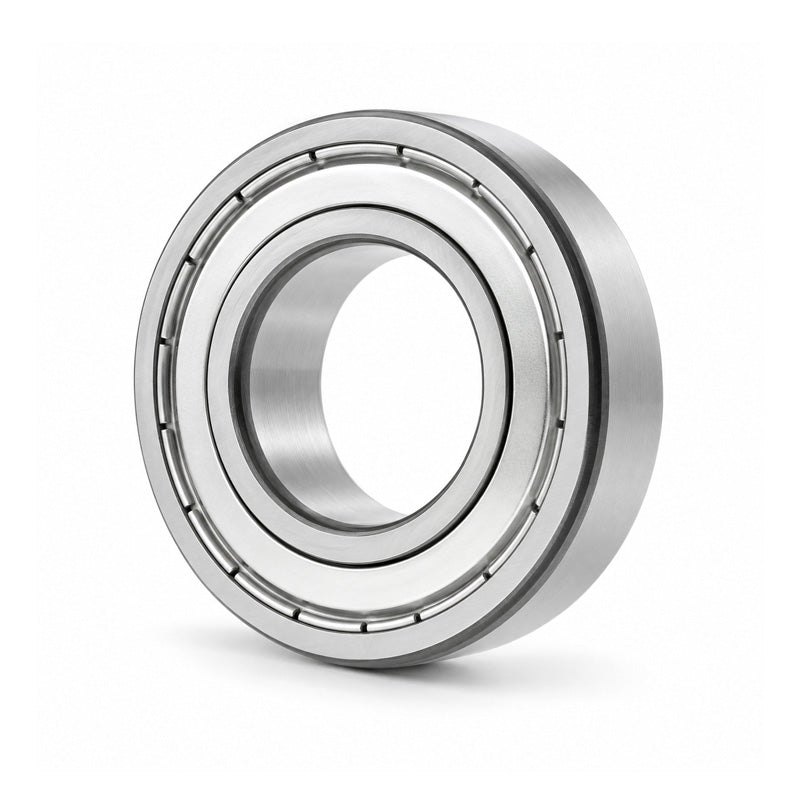

6807ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 35x47x7mm
Equivalent to: 61807ZZE 61807ZZ 61807.2Z 61807KDD 61807DD 61807FF 6807ZZE 6807ZZ 68072Z 6807.2Z 6807KDD 6807DD 68072ZR 6807FF 618072ZR 61807ZZE 61807ZZ 618072ZR 618072RS2
In stock
Price Break
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61807ZZE 61807ZZ 61807.2Z 61807KDD 61807DD 61807FF 6807ZZE 6807ZZ 68072Z 6807.2Z 6807KDD 6807DD 68072ZR 6807FF 618072ZR 61807ZZE 61807ZZ 618072ZR 618072RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 35mm |
|---|---|
| D | 47mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4.75 kN |
| Static load Cor | 3.85 kN |
| Speed in grease | 13000 rpm |
| Speed in oil | 16000 rpm |
