SKU: 61808-SKF

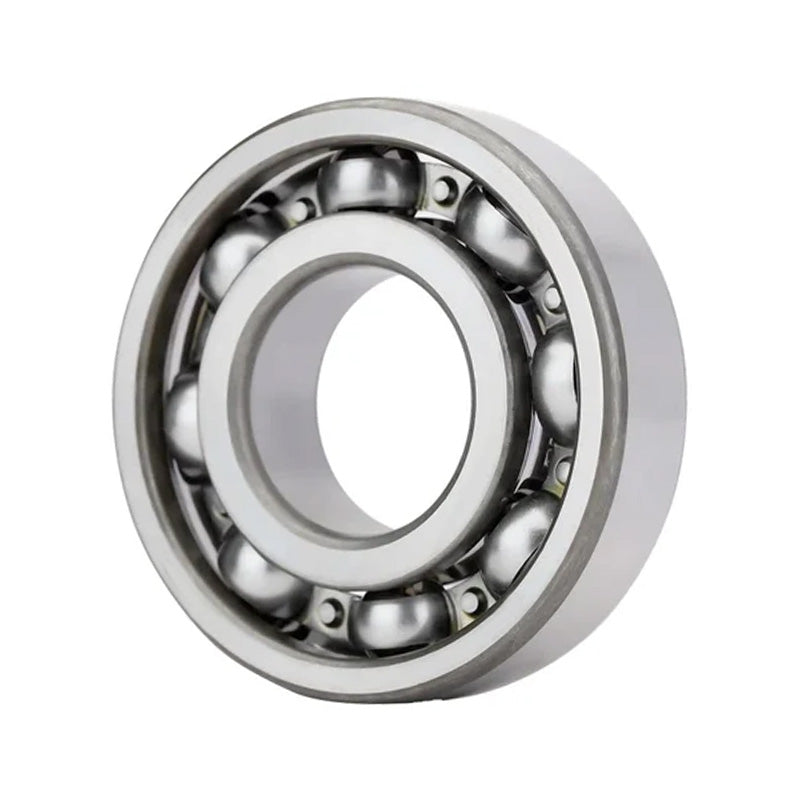

SKF 61808 Open Type Thin Section Deep Groove Ball Bearing 40x52x7mm
SKF 61808 Open Type Thin Section Deep Groove Ball Bearing 40x52x7mm
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
4+
CHF 27.88
10+
CHF 26.31
20+
CHF 26.00
30+
CHF 25.69
50+
CHF 25.37
75+
CHF 25.06
100+
CHF 23.50
200+
CHF 23.18
250+
CHF 22.87
500+
CHF 22.56
1000+
CHF 21.93
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 52mm |
| B | 7mm |
| Dynamic load | 4.94 kN |
| Static load | 3.45 kN |
| Fatigue load limit Pu | 0.19 kN |
| Reference speed | 26000 rpm |
| Limiting speed | 16000 rpm |
| Weight | 0.034 kg |
| d1 | 43.7mm |
| D1 | 48.5mm |
| D2 | n/amm |
| r1r2 min | 0.3mm |
| da min | 42mm |
| Da max | 50mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.015 |
| Calculation factor Cor | 14 |
