SKU: 61808-ZZ-CDX

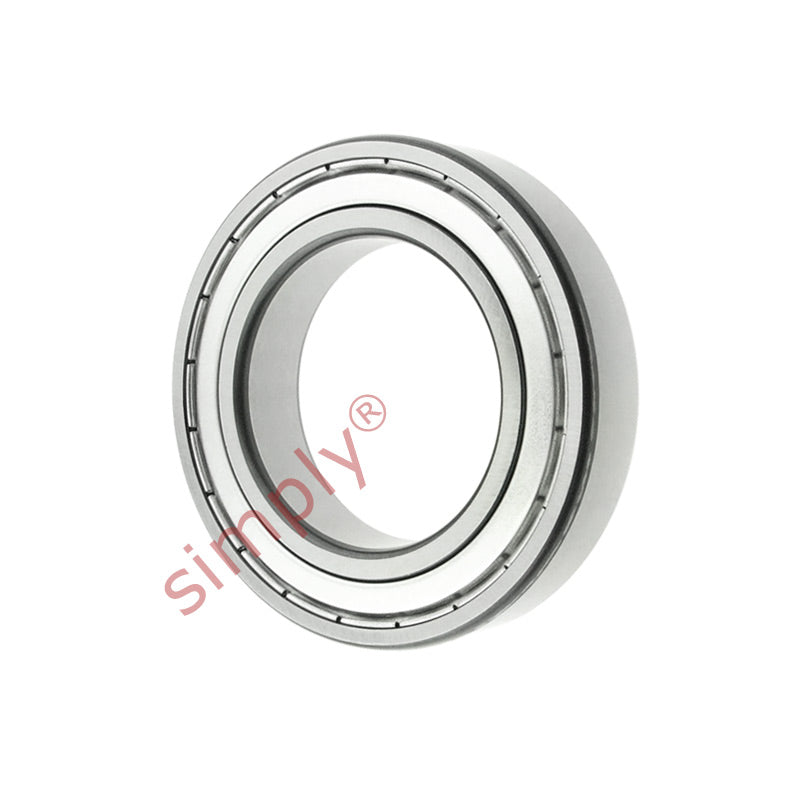

Codex 61808ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 40x52x7mm
Equivalent to: 61808ZZ 618082Z 618082ZR 61808ZZE 61808FF 61808DD 61808DDC 61808KDDC EL40ZZ EL402Z
In stock
Price Break
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61808ZZ 618082Z 618082ZR 61808ZZE 61808FF 61808DD 61808DDC 61808KDDC EL40ZZ EL402Z
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 40mm |
|---|---|
| D | 52mm |
| B | 7mm |
| Dynamic Load | 4.94 kN |
| Static Load | 3.45 kN |
| Fatigue Load Limit Pu | 0.186 |
| Reference Speed | 26000 rpm |
| Limiting Speed | 7500 rpm |
| Weight | 0.000034kg |
| d1 | -mm |
| D2 | 49.6mm |
| r1r2 min | 0.3mm |
| da min | 42mm |
| Da max | 50mm |
| ra max | 0.3 |
| Calc factor kr | 0.015 |
| Calc factor Cor f0 | 14 |
