SKU: 61809-2RS1-EU

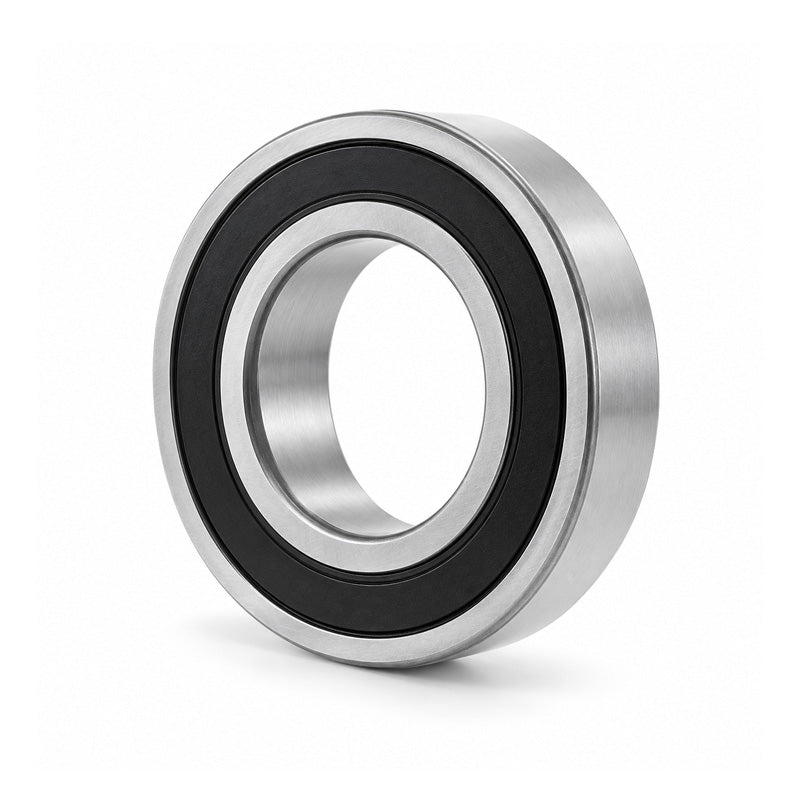

68092RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 45x58x7mm
Equivalent to: 61809NSE 61809DU 61809RS 618092RSH 61809P 61809RSR 61809LU 6809NSE 6809DU 6809RS 68092RSH 6809P 6809RSR 6809LU 618092NSE 61809DDU 618092RS 6180922RSH 61809PP 618092RSR 61809LLU 618092RS2 61809RS2 618092RSH 618092RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61809NSE 61809DU 61809RS 618092RSH 61809P 61809RSR 61809LU 6809NSE 6809DU 6809RS 68092RSH 6809P 6809RSR 6809LU 618092NSE 61809DDU 618092RS 6180922RSH 61809PP 618092RSR 61809LLU 618092RS2 61809RS2 618092RSH 618092RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 45mm |
|---|---|
| D | 58mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 6.2 kN |
| Static load Cor | 5.4 kN |
| Speed in grease | 11000 rpm |
| Speed in oil | 13000 rpm |
