SKU: 61816-2RS1-EU

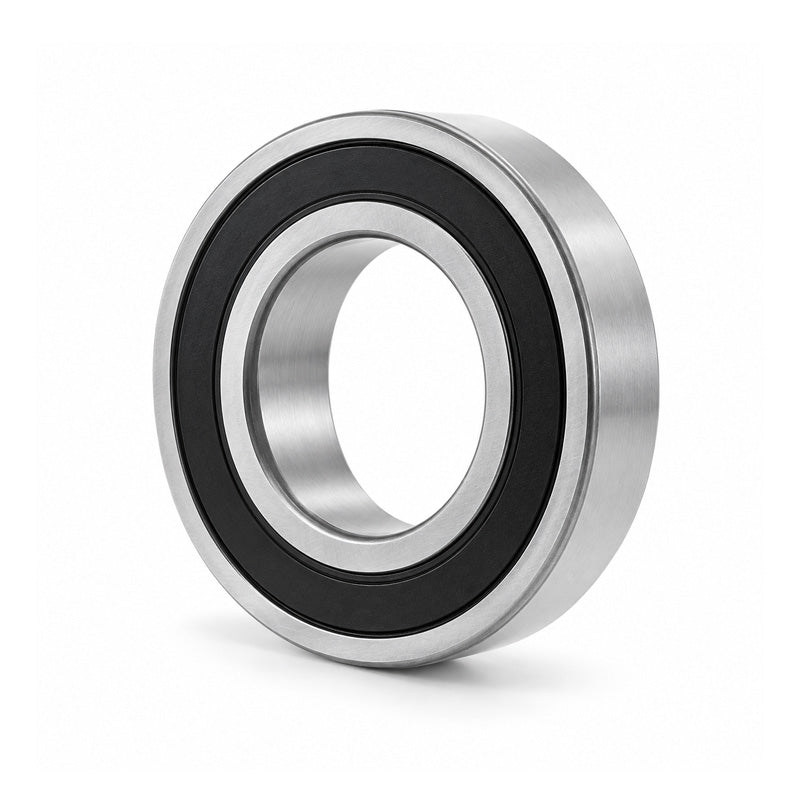

68162RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 80x100x10mm
Equivalent to: 61816NSE 61816DU 61816RS 618162RSH 61816P 61816RSR 61816LU 6816NSE 6816DU 6816RS 68162RSH 6816P 6816RSR 6816LU 618162NSE 61816DDU 618162RS 6181622RSH 61816PP 618162RSR 61816LLU 618162RS2 61816RS2 618162RSH 618162RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61816NSE 61816DU 61816RS 618162RSH 61816P 61816RSR 61816LU 6816NSE 6816DU 6816RS 68162RSH 6816P 6816RSR 6816LU 618162NSE 61816DDU 618162RS 6181622RSH 61816PP 618162RSR 61816LLU 618162RS2 61816RS2 618162RSH 618162RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 80mm |
|---|---|
| D | 100mm |
| B | 10mm |
| r min | 0.6mm |
| Dynamic load Cr | 12.7 kN |
| Static load Cor | 13.3 kN |
| Speed in grease | 6100 rpm |
| Speed in oil | 7200 rpm |
