SKU: 61820-2RS1-EU

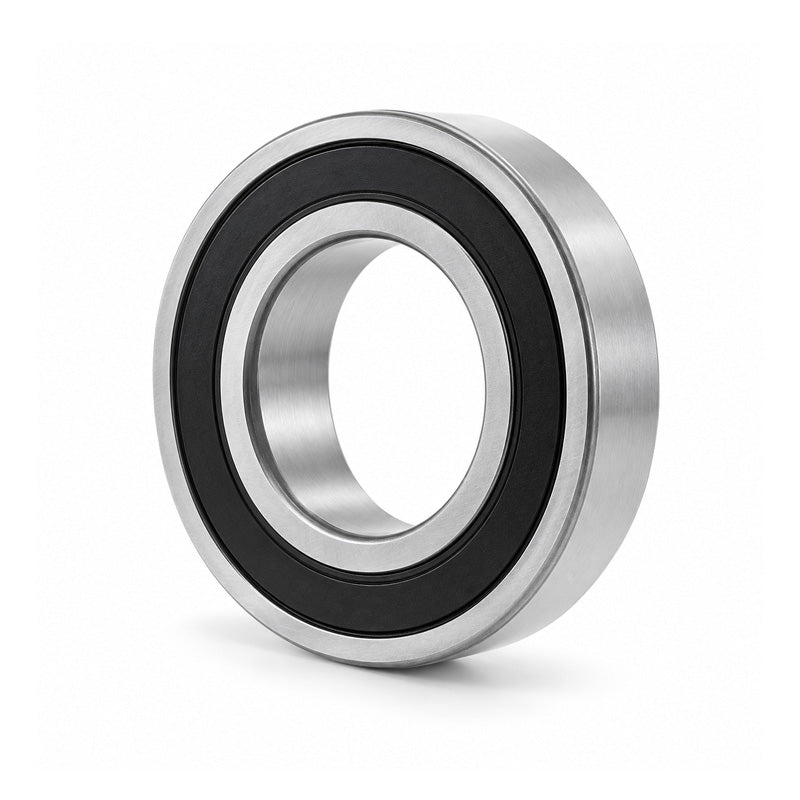

68202RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 100x125x13mm
Equivalent to: 61820NSE 61820DU 61820RS 618202RSH 61820P 61820RSR 61820LU 6820NSE 6820DU 6820RS 68202RSH 6820P 6820RSR 6820LU 618202NSE 61820DDU 618202RS 6182022RSH 61820PP 618202RSR 61820LLU 618202RS2 61820RS2 618202RSH 618202RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61820NSE 61820DU 61820RS 618202RSH 61820P 61820RSR 61820LU 6820NSE 6820DU 6820RS 68202RSH 6820P 6820RSR 6820LU 618202NSE 61820DDU 618202RS 6182022RSH 61820PP 618202RSR 61820LLU 618202RS2 61820RS2 618202RSH 618202RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 125mm
- Width:
- 13mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 100mm |
|---|---|
| D | 125mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 19.6 kN |
| Static load Cor | 21.2 kN |
| Speed in grease | 4800 rpm |
| Speed in oil | 5700 rpm |
