SKU: 61836-EU

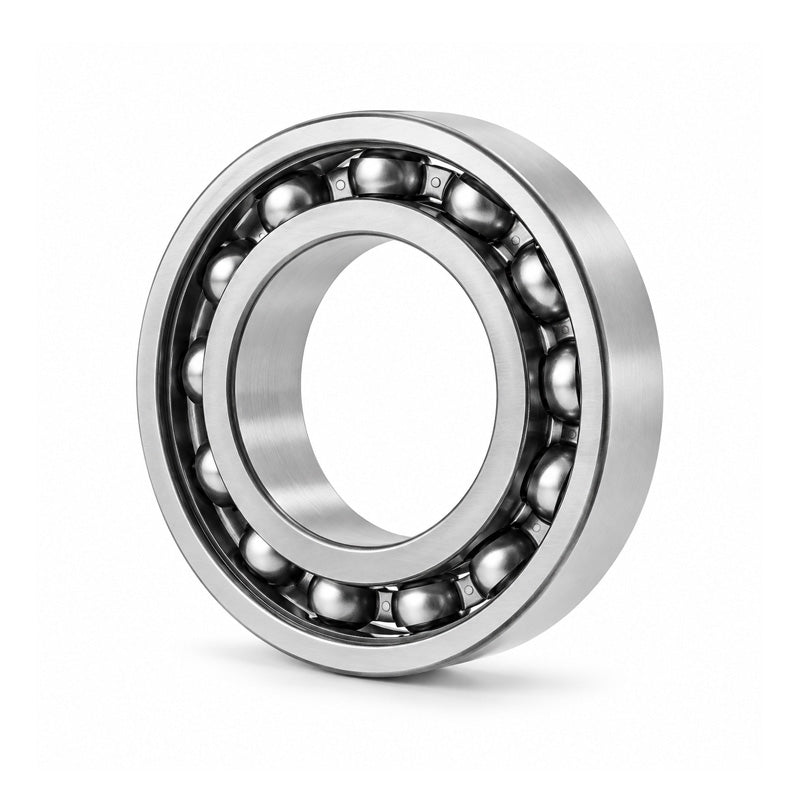

6836 Budget Open Type Thin Section Deep Groove Ball Bearing 180x225x22mm
6836 Budget Open Type Thin Section Deep Groove Ball Bearing 180x225x22mm
Regular price
CHF 77.34
ex VAT
Regular price
Sale price
CHF 77.34
ex VAT
Equivalent to: 61836
In stock
Price Break
10+
CHF 68.83
19+
CHF 64.97
29+
CHF 64.19
39+
CHF 63.42
49+
CHF 62.65
74+
CHF 61.87
99+
CHF 58.01
199+
CHF 57.23
249+
CHF 56.46
499+
CHF 55.68
999+
CHF 54.14
Couldn't load pickup availability
Description
Description
|
Budget Thin Section Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 61836
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 225mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 180mm |
|---|---|
| D | 225mm |
| B | 22mm |
| r min | 1.1mm |
| Dynamic load Cr | 60.7 kN |
| Static load Cor | 73.1 kN |
| Speed in grease | 2600 rpm |
| Speed in oil | 3000 rpm |
