SKU: 61900-2RS1-EU

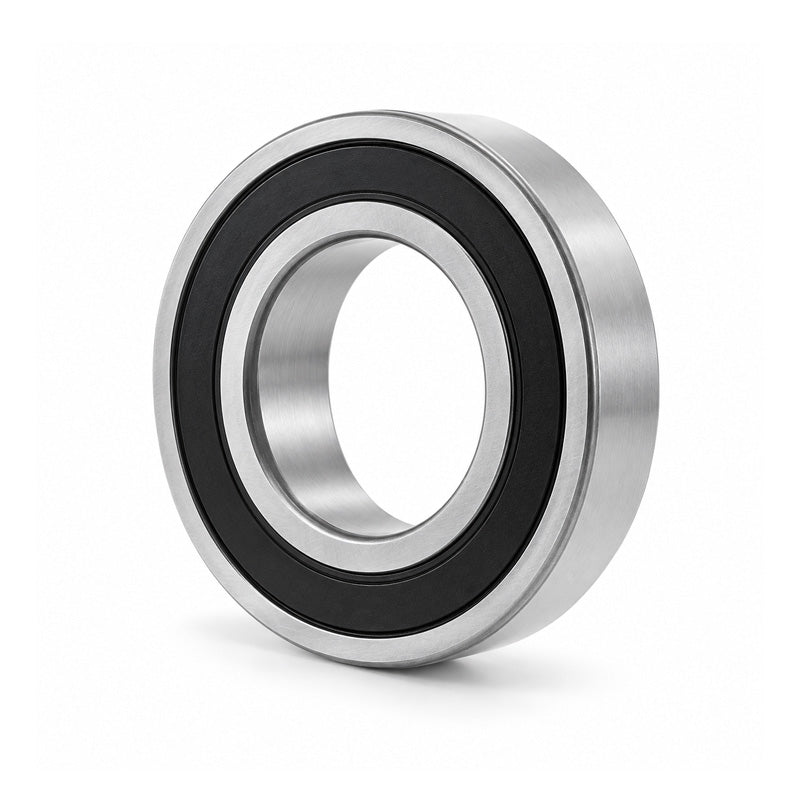

69002RS Budget Rubber Sealed Thin Section Deep Groove Ball Bearing 10x22x6mm
Equivalent to: 61900NSE 61900DU 61900RS 619002RSH 61900P 61900RSR 61900LU 6900NSE 6900DU 6900RS 69002RSH 6900P 6900RSR 6900LU 619002NSE 61900DDU 619002RS 6190022RSH 61900PP 619002RSR 61900LLU 619002RS2 61900RS2 619002RSH 619002RS1
In stock
Price Break
Description
|
Budget Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61900NSE 61900DU 61900RS 619002RSH 61900P 61900RSR 61900LU 6900NSE 6900DU 6900RS 69002RSH 6900P 6900RSR 6900LU 619002NSE 61900DDU 619002RS 6190022RSH 61900PP 619002RSR 61900LLU 619002RS2 61900RS2 619002RSH 619002RS1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 6mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 6mm |
| r min | 0.3mm |
| Dynamic load Cr | 2.7 kN |
| Static load Cor | 1.25 kN |
| Speed in grease | 34000 rpm |
| Speed in oil | 41000 rpm |
