SKU: 61921-2Z-EU

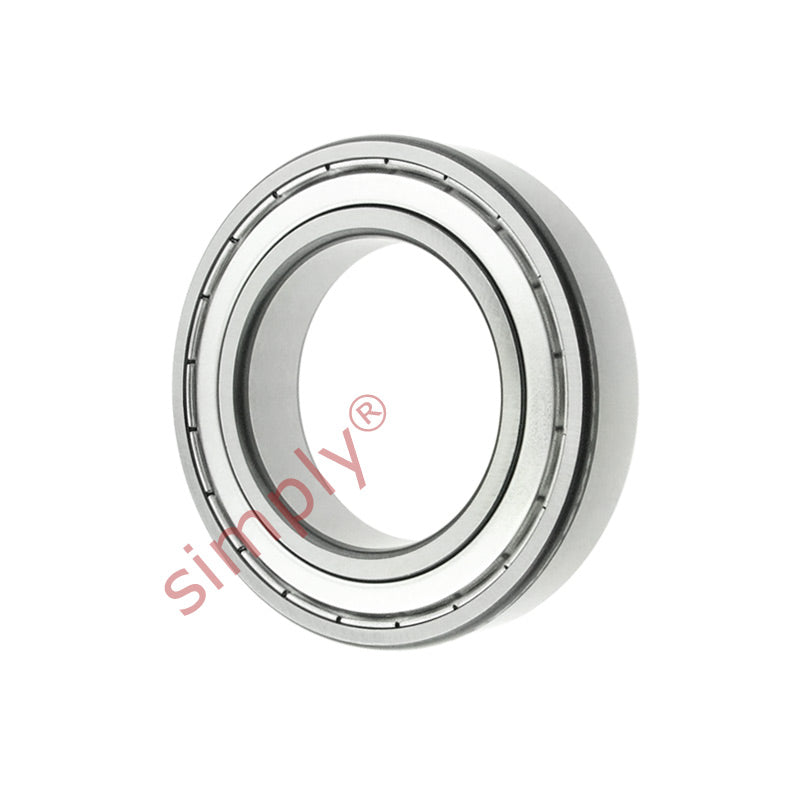

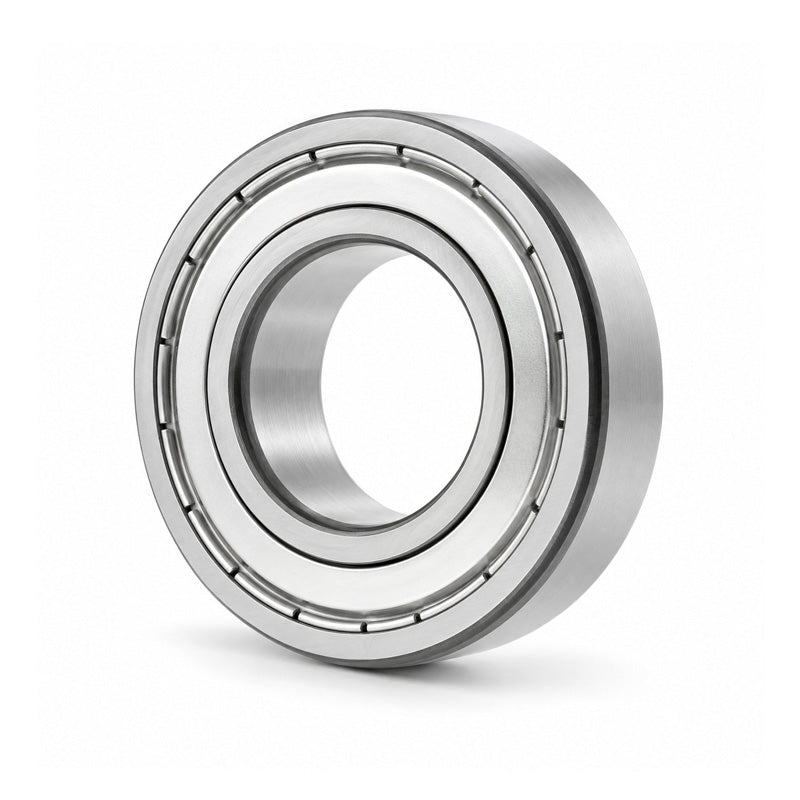

6921ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 105x145x20mm
Equivalent to: 61921ZZE 61921ZZ 61921.2Z 61921KDD 61921DD 61921FF 6921ZZE 6921ZZ 69212Z 6921.2Z 6921KDD 6921DD 69212ZR 6921FF 619212ZR 61921ZZE 61921ZZ 619212ZR 619212RS2
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61921ZZE 61921ZZ 61921.2Z 61921KDD 61921DD 61921FF 6921ZZE 6921ZZ 69212Z 6921.2Z 6921KDD 6921DD 69212ZR 6921FF 619212ZR 61921ZZE 61921ZZ 619212ZR 619212RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 145mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 105mm |
|---|---|
| D | 145mm |
| B | 20mm |
| r min | 1.1mm |
| Dynamic load Cr | 46.5 kN |
| Static load Cor | 44.8 kN |
| Speed in grease | 4300 rpm |
| Speed in oil | 5100 rpm |
