SKU: 62/22/C3-MB

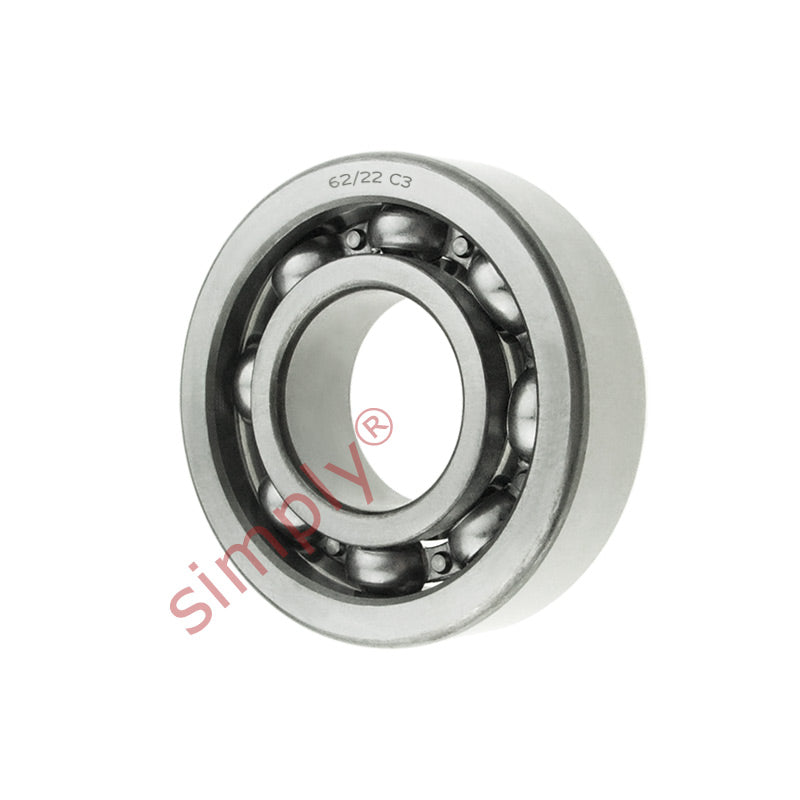

Major Brand 62/22C3 Open Deep Groove Ball Bearing 22x50x14mm
Major Brand 62/22C3 Open Deep Groove Ball Bearing 22x50x14mm
Regular price
CHF 18.86
ex VAT
Regular price
Sale price
CHF 18.86
ex VAT
In stock
Price Break
10+
CHF 16.79
19+
CHF 15.84
29+
CHF 15.65
39+
CHF 15.47
49+
CHF 15.28
74+
CHF 15.09
99+
CHF 14.15
199+
CHF 13.96
249+
CHF 13.77
499+
CHF 13.58
999+
CHF 13.20
Couldn't load pickup availability
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 50mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 22mm |
|---|---|
| D | 50mm |
| B | 14mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.65 kN |
| Fatigue load limit Pu | 0.325 kN |
| Reference speed | 30000 rpm |
| Limiting speed | 19000 rpm |
| Mass | 0.12 kg |
| d1 | 32.2mm |
| D1 | 41.8mm |
| D2 | 44mm |
| r1r2 min | 1mm |
| da min | 27.6mm |
| Da max | 44.4mm |
| ra max | 1mm |
| Calc factor Kr | 0.025 |
| Calc factor | 14 |
