SKU: 6200-NTN

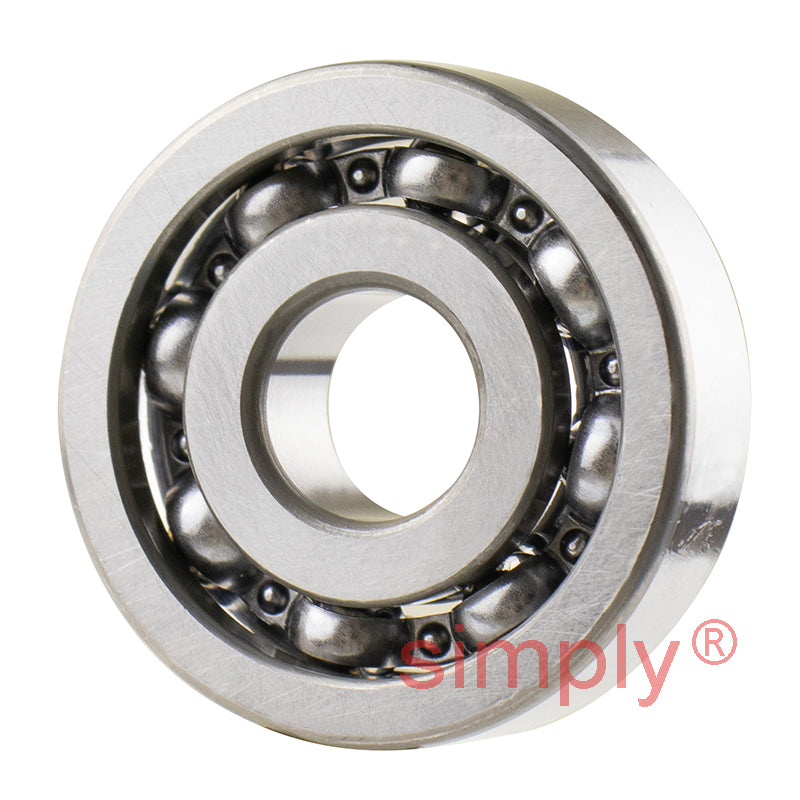

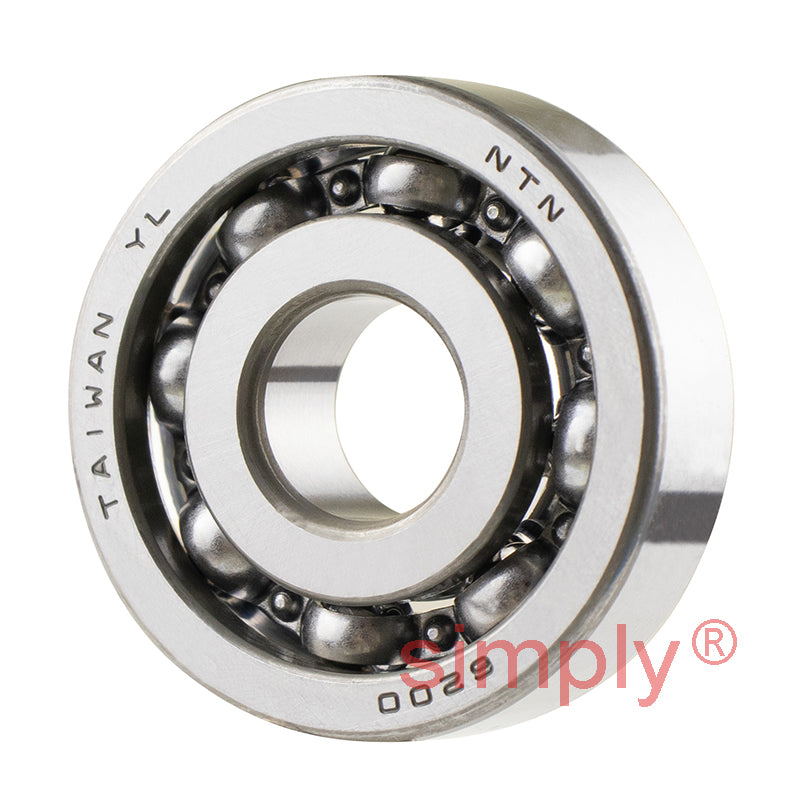

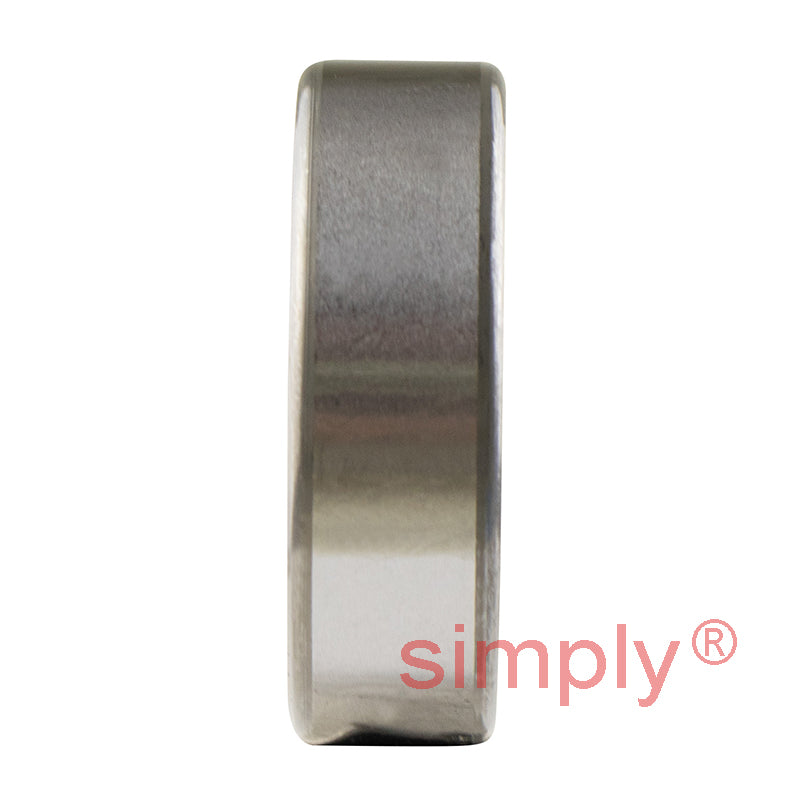

NTN 6200 Open Type Deep Groove Ball Bearing 10x30x9mm
NTN 6200 Open Type Deep Groove Ball Bearing 10x30x9mm
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
Equivalent to: 6200CM 200K 1200 200S 6200 3200 04A
In stock
Price Break
3+
CHF 3.66
5+
CHF 3.45
10+
CHF 3.41
25+
CHF 3.37
49+
CHF 3.33
74+
CHF 3.29
99+
CHF 3.08
199+
CHF 3.04
249+
CHF 3.00
499+
CHF 2.96
999+
CHF 2.88
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6200CM 200K 1200 200S 6200 3200 04A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 30mm |
| B | 9mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.65 kN |
| C<sub>or</sub> | 2.39 kN |
| C<sub>u</sub> | 0.182 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 25000 rpm |
| Oil | 30000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| D<sub>a</sub> Max. | 26mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.032 kg |
