SKU: 6200LLUNR/2AS-NTN

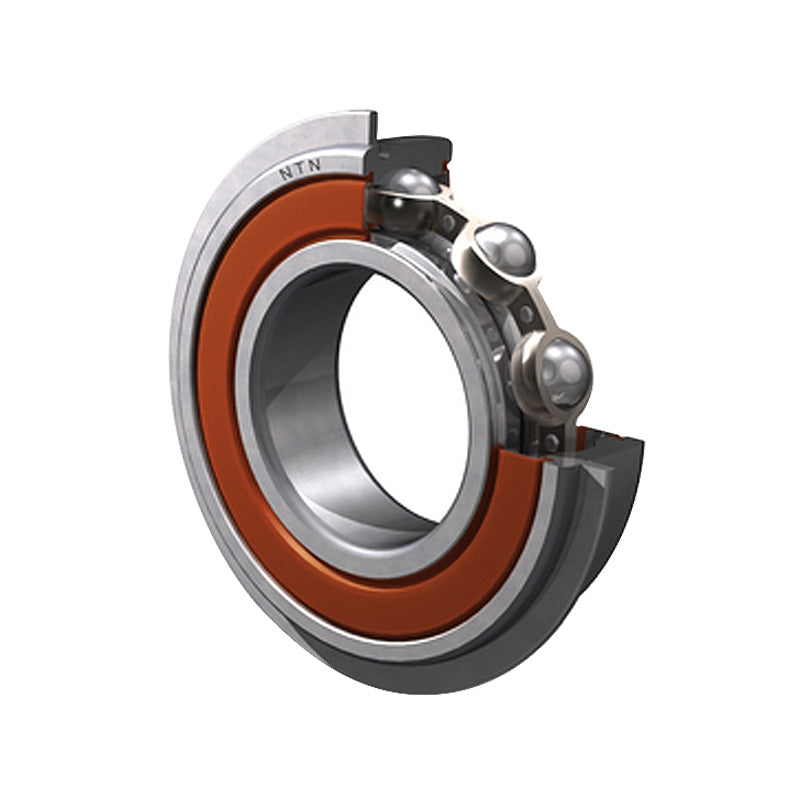

NTN 6200LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 10x30x9mm
Equivalent to: 6200LLUNRCM 6200LLUNR 6200NSENR 6200DUNR 6200RSNR 6200RSHNR 6200PNR 6200RSRNR 6200LUNR 62002NSENR 6200DDUNR 62002RSNR 6200-2RSNR 62002RS1NR 62002RSHNR 6200PPNR 62002RSRNR 6200LLUNR 6200RS2NR 62002RS2NR 62002RSLNR 6200LFSNR 6200EENR Z49500 200SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 30mm
- Width:
- 9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 30mm |
| B | 9mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 5.65 kN |
| C<sub>or</sub> | 2.39 kN |
| C<sub>u</sub> | 0.182 kN |
| f<sub>0</sub> | 13.2 |
| --- | Fitting Dimensions |
| Speed | 18000rpm |
| D<sub>1</sub> Max. | 28.17mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
