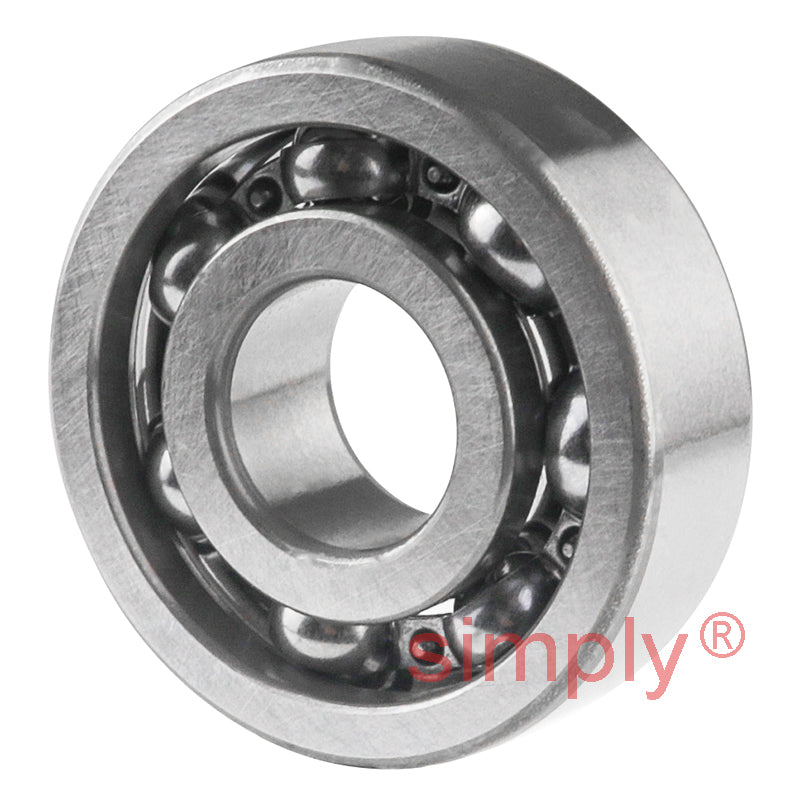

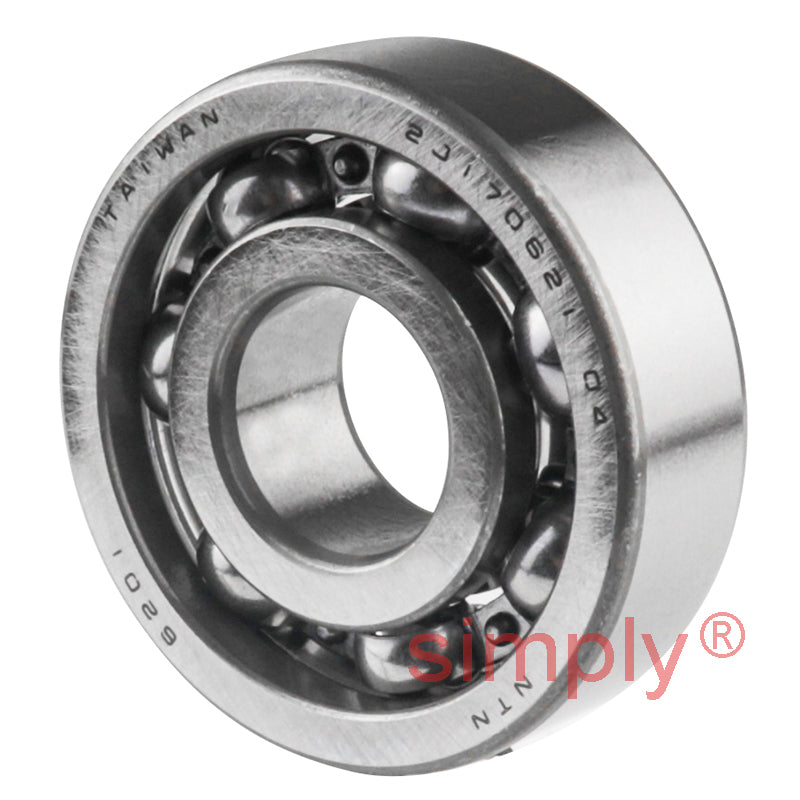

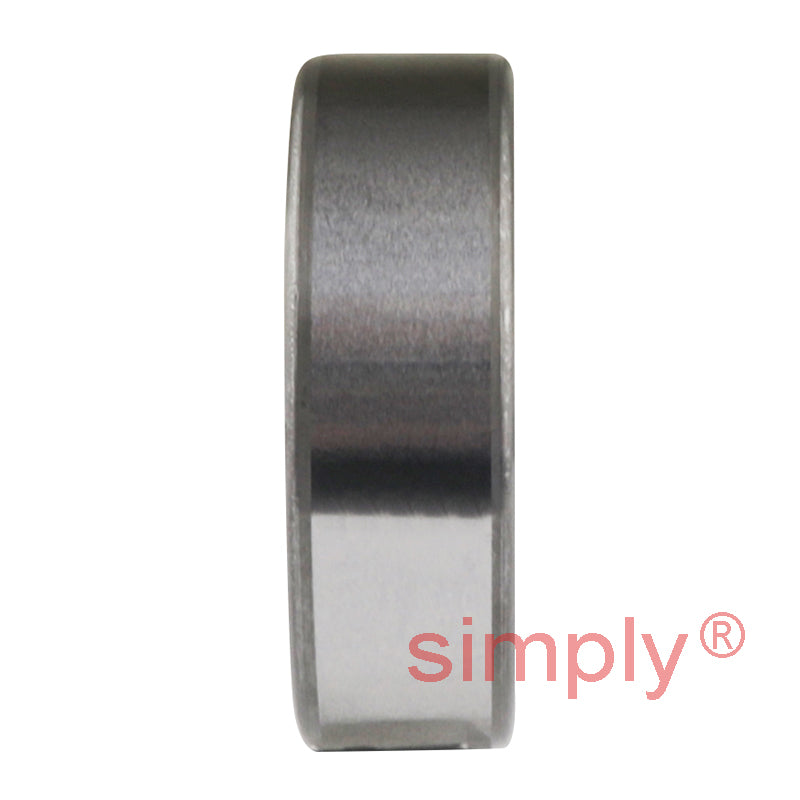

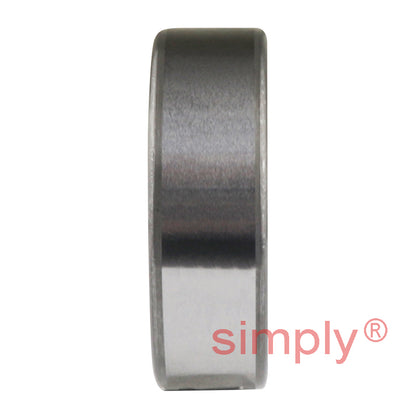

NTN 6201 Open Type Deep Groove Ball Bearing 12x32x10mm
NTN 6201 Open Type Deep Groove Ball Bearing 12x32x10mm
Regular price
CHF 5.00
ex VAT
Regular price
Sale price
CHF 5.00
ex VAT
Equivalent to: 6201CM 201K 1201 201S 6201 3201 03A
In stock
Price Break
3+
CHF 3.84
5+
CHF 3.62
10+
CHF 3.58
25+
CHF 3.53
49+
CHF 3.49
74+
CHF 3.45
99+
CHF 3.23
199+
CHF 3.19
249+
CHF 3.15
499+
CHF 3.10
999+
CHF 3.02
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6201CM 201K 1201 201S 6201 3201 03A
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 32mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 6.75 kN |
| C<sub>or</sub> | 2.75 kN |
| C<sub>u</sub> | 0.214 kN |
| f<sub>0</sub> | 12.7 kN |
| Grease | 22000 rpm |
| Oil | 26000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 16mm |
| D<sub>a</sub> Max. | 28mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.037 kg |
