SKU: 6201NR-NSK
NSK 6201NR Open Type Deep Groove Ball Bearing With Snap Ring 12x32x10mm
NSK 6201NR Open Type Deep Groove Ball Bearing With Snap Ring 12x32x10mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
4+
CHF 12.65
10+
CHF 11.94
20+
CHF 11.79
30+
CHF 11.65
50+
CHF 11.51
75+
CHF 11.37
100+
CHF 10.66
200+
CHF 10.51
250+
CHF 10.37
500+
CHF 10.23
1000+
CHF 9.95
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical

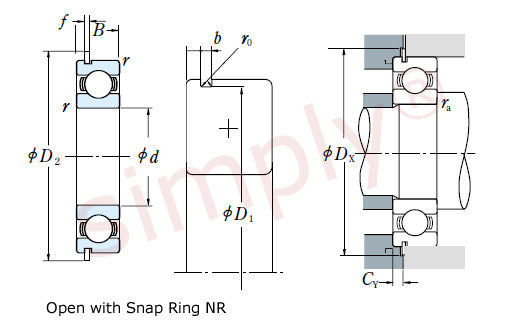

| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| r min | 0.6mm |
| Dynamic load Cr | 6800 N (695 kgf) |
| Static load Cor | 3050 N (310 kgf) |
| Factor | 12.3 |
| Speed in grease | 22000 rpm |
| Speed in oil | 28000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 30.15mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 36.7mm |
| f max | 1.12mm |
| da2 min | 16mm |
| da2max | 17mm |
| Da2max | 28mm |
| ra max | 0.6mm |
| Dx min | 37.5mm |
| Cy max | 2.9mm |
| Weight | 0.037 kg |
