SKU: 6202-2NSE-NACHI

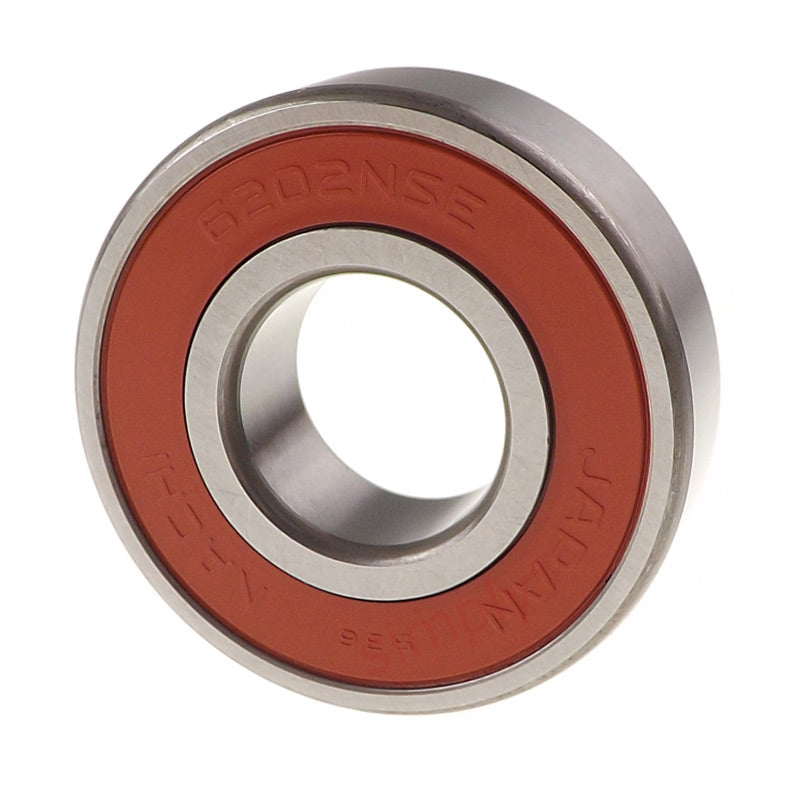

NACHI 62022NSE Contact Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
NACHI 62022NSE Contact Rubber Sealed Deep Groove Ball Bearing 15x35x11mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 6202NSE 6202DU 6202RS 6202RSH 6202P 6202RSR 6202LU 6202DDU 62022RS 62022RS1 62022RSH 6202PP 62022RSR 62022RSR
In stock
Price Break
5+
CHF 4.68
9+
CHF 4.42
19+
CHF 4.37
29+
CHF 4.32
49+
CHF 4.26
74+
CHF 4.21
99+
CHF 3.95
199+
CHF 3.90
249+
CHF 3.84
499+
CHF 3.79
999+
CHF 3.68
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6202NSE 6202DU 6202RS 6202RSH 6202P 6202RSR 6202LU 6202DDU 62022RS 62022RS1 62022RSH 6202PP 62022RSR 62022RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 11mm |
| Min radius r | 0.6mm |
| Dynamic load | 7650 kN |
| Static load | 3700 kN |
| Max speed | 20000 rpm |
| da min | 20mm |
| Da max | 30mm |
| ra max | 0.6mm |
| Weight | 0.045 kg |
