SKU: 6202-2Z/C3-FAG

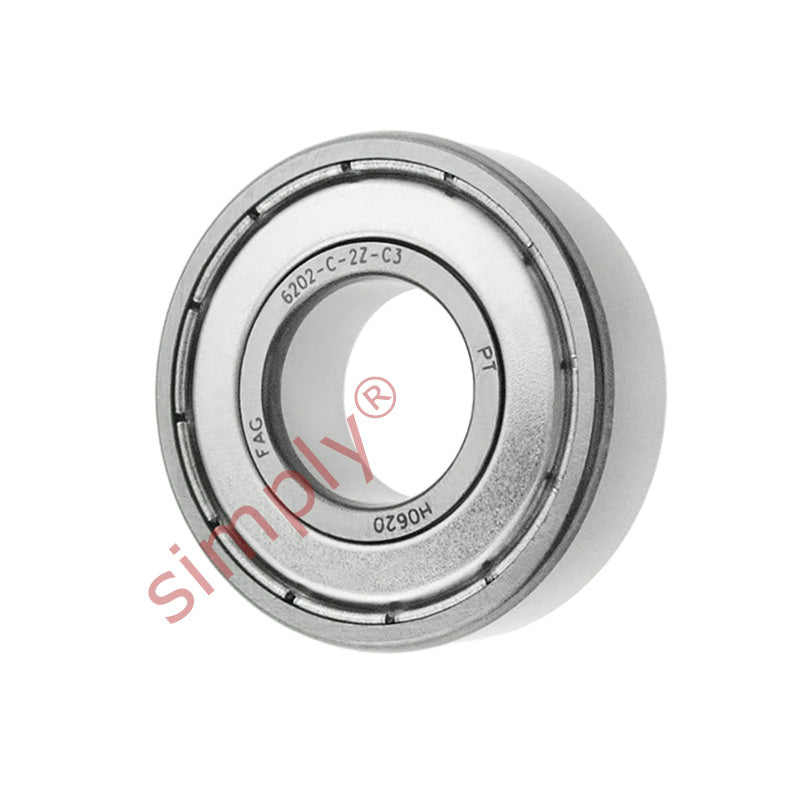

FAG 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm
FAG 62022ZC3 Metal Shielded Deep Groove Ball Bearing 15x35x11mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 6202ZZEC3 6202ZZC3 6202.2ZC3 6202KDDC3 6202DDC3 62022ZRC3 6202FFC3
In stock
Price Break
10+
CHF 4.62
19+
CHF 4.36
29+
CHF 4.31
39+
CHF 4.26
49+
CHF 4.20
74+
CHF 4.15
99+
CHF 3.89
199+
CHF 3.84
249+
CHF 3.79
499+
CHF 3.74
999+
CHF 3.63
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6202ZZEC3 6202ZZC3 6202.2ZC3 6202KDDC3 6202DDC3 62022ZRC3 6202FFC3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load C | 8.06 kN |
| Static load Co | 3.75 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 22000 rpm |
| Mass | 0.045 kg |
| d1 | 21.7mm |
| D2 | 30.4mm |
| r1r2 min | 0.6mm |
| da min | 19.2 |
